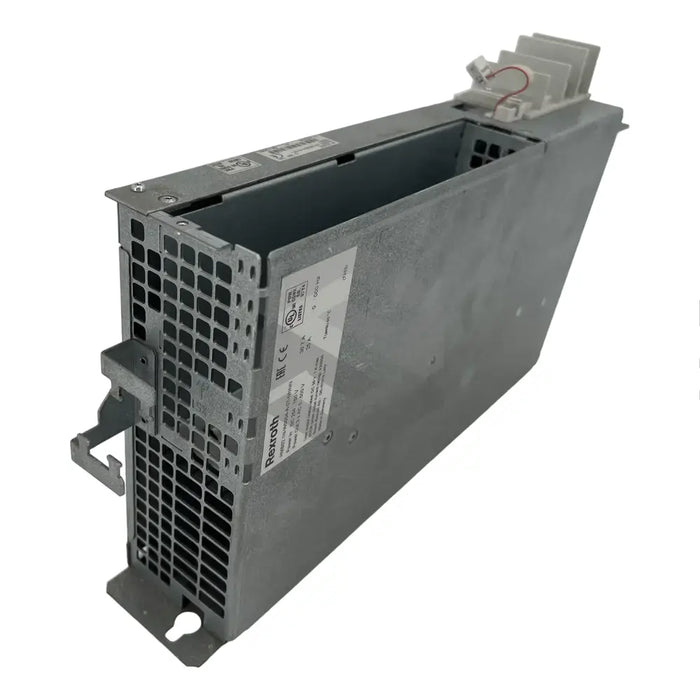

C image of HMS02.1N-W0054-A-07-NNNN | Main (Front Left)

HMS02.1N-W0054-A-07-NNNN

by Bosch Rexroth Indramat
$2,894.90 - $8,587.00
$2,894.90
$2,894.90 - $8,587.00
$2,894.90

In Stock, Ships 1 - 3 Days

The HMS02.1N-W0054-A-07-NNNN, produced by Bosch Rexroth Indramat, is a power section component of the Rexroth IndraDrive system. Recognized by UL and approved by CSA, it can be utilized for various applications worldwide. The unit operates within a temperature range of -26 to 70 degrees and a relative humidity of 5 to 95%. For long-term storage exceeding a year, it is recommended to operate the device for one hour to prevent deterioration of electrolytic capacitors. It implements an air cooling method, has a maximum current of 54A, and a nominal DC bus voltage of 700 V. Additional specifications include a short circuit current rating of 42000 A rms and insulation resistance greater than 8 Mohm. The optimal installation area should have an IP 10 protection class, an ambient temperature range of 0 to 40 degrees, and be located below an altitude of 1000 meters for best performance.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

HMS02.1N-W0054-A-07-NNNN

System Components

Rexroth IndraDrive system

Certifications

UL recognized, CSA approved

Transport Temperature Range

-26 to 70 degrees

Relative Humidity

5 to 95%

Storage Condition

Operate for at least one hour if stored for more than a year

Cooling Method

Air cooling

Maximum Current

54A

Protection Category

IP 20

Nominal DC Bus Voltage

700 V

Short Circuit Current Rating

42000 A rms

Rated Input Voltage

DC 254 … 760 V

Rated Input Current

30.7 A

Output Current

25.0 A

Weight

5.0 kg

Dimensions

352 x 205 x 75 mm

Insulation Resistance

>8 Mohm

Mounting Orientation

Vertical in IP 10 control cabinet

Ambient Operating Temperature Range

0 to 40 degrees

Maximum Installation Altitude

1000 meters

Clearance

80 mm above and 100 mm below

Volumetric Capacity of Forced Cooling Air

37.0 m3/h

Switching Frequencies

4 to 16 kHz.
