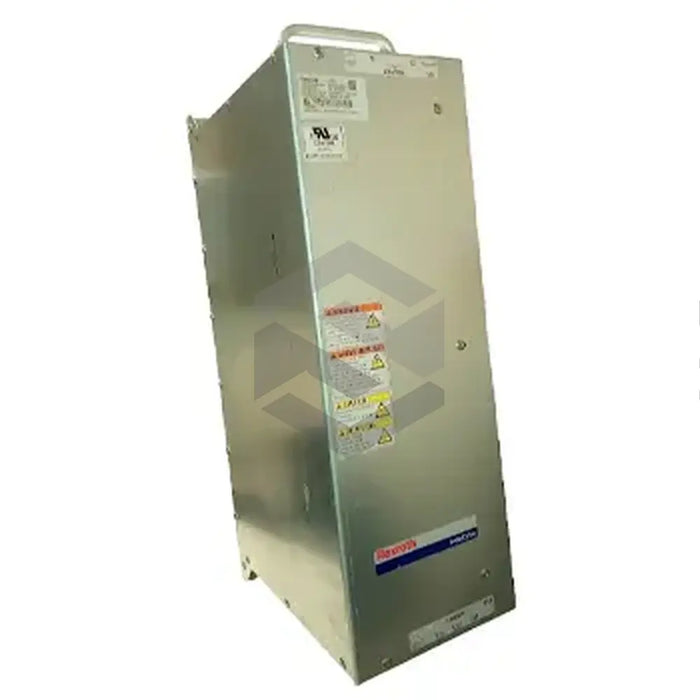

S image of HNF01.1A-F240-R0065

HNF01.1A-F240-R0065

by Bosch Rexroth Indramat
$1,178.13 - $1,178.13
$1,178.13
$1,178.13 - $1,178.13
$1,178.13

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat manufactured HNF01.1A-F240-R0065 is a UL Listed, CSA Certified, mains filter predominantly used in six-axis drive controllers and power converters. It has a nominal current rating of 65A and can accommodate a maximum connection length of 240 meters. The filter, with a power dissipation of 163W, must be mounted in a control cabinet with at least 80mm of free space both above and below. An isolating transformer is required when used at the grounded mains via an external conductor. Its tolerances are +/-10% for voltage and +/- 2Hz for input frequency. The filter's features include a maximum peak current allowance of 163A and it can support up to 12 drives simultaneously. Asynchronous servomotors can operate with the drive controller incorporating this filter. However, the unit has no support for three-phase mains voltage at IT and corner-grounded-delta mains.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Mains Filter

UL Listed

Yes

CSA Certified

Yes

Nominal Current Rating

65A

Use With Axis Drive Controllers

6

Connection Length to Drive Controller

240m

Power Dissipation

163W

Orientation

Normal

Top & Bottom Free Space

80mm

Tolerance

+/10%

Tolerance Input Frequency

+/2Hz

Max Peak Current

163A

Three-Phase Mains Voltage Support

No

Usable with Servomotors

Yes

Max Connection Cross-Section

AWG 4 or 25mm2

Max Tightening Torque

4.5Nm

Max Mounting Screws Tightening Torque

8.6Nm

Function at Filter

No

Mount Location

Inside control cabinet

Connection Method

Fiber optic cable.
