HNL01.1E-0170-N0146-A-500-NNNN

Original price $2,604.00 - Original price $2,604.00
Original price
$2,604.00
$2,604.00 - $2,604.00
Current price $2,604.00
Available, Shipping Varies
Request a quote

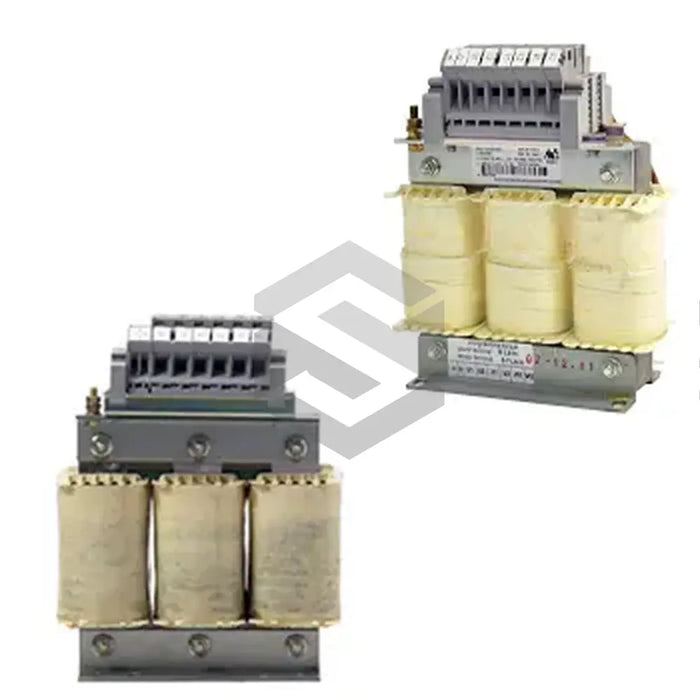

The Bosch Rexroth Indramat HNL01.1E-0170-N0146-A-500-NNNN is a type E mains choke with a dimension of 250 mm x 205 mm x 230 mm and a weight of 23 kg. Specifically designed for HCS03.1E-W0210 compact converter and supply units with line rectifiers, this device enhances higher direct current bus continuous power. With a nominal current rating of 146 Amps and a power dissipation of 130 Watts, it has a nominal inductance rating of 3 x 170 µH. This mains choke is adept at reducing harmonics in the line current and preventing troublesome mains feedback. The protection class is IP 10, safeguarding against large surfaces that are over 50mm but offers no water ingress protection. It operates at a mains connection voltage of 3 x AC 400 – 500 Volts and a 50 – 60 Hz mains frequency, and can withstand a shock resistance of 15 g for 11 ms, pursuant to IEC 60068-2-27 requirements.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Mains Choke
  • Model: HNL01.1E-0170-N0146-A-500-NNNN
  • Device Dimensions: 250 mm x 205 mm x 230 mm
  • Device Weight: 23 kg
  • Compatibility: HCS03.1E-W0210 Compact Converter
  • Application: Supply Units with Line Rectifiers
  • Nominal Current Rating: 146 A
  • Power Dissipation: 130 Watts
  • Inductance: 3 x 170 µH
  • Protection Class: IP 10
  • Mains Connection Voltage: 3 x AC 400-500 Volts
  • Mains Frequency: 50-60 Hz
  • Connection Points: Terminal Lugs
  • Shock Resistance: 15 g for 11 ms
  • Permissible Installation Altitude: 0 - 1000 Meters
  • Derated Installation Altitude: Up to 3000 Meters
  • Environmental Temperature Range: -10 C to 50 C
  • Storage Temperature Range: -40 C to 70 C
