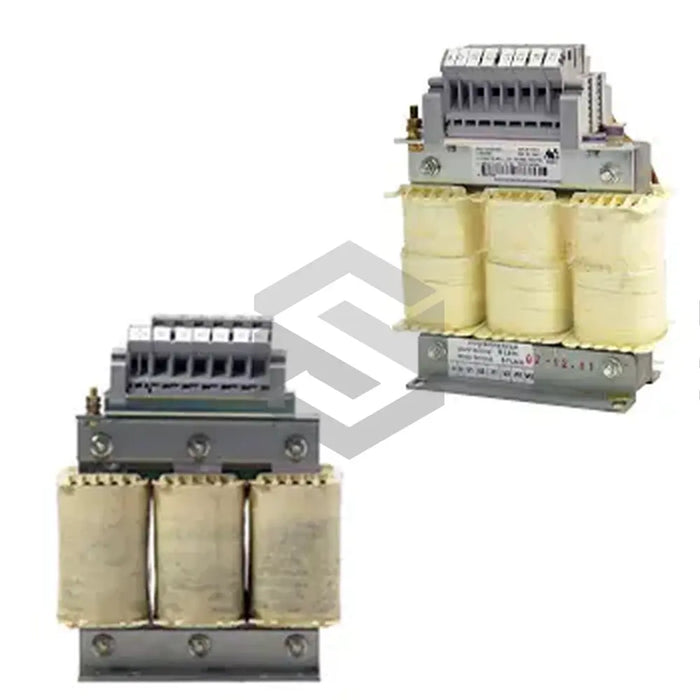

manufacturer image of HNL01.1E-1000-N0020-A-500-NNNN

HNL01.1E-1000-N0020-A-500-NNNN

by Bosch Rexroth Indramat
$1,075.32 - $1,075.32
$1,075.32
$1,075.32 - $1,075.32
$1,075.32
Available, Shipping Varies
The HNL01.1E-1000-N0020-A-500-NNNN is a type A mains choke produced by Bosch Rexroth Indramat. This model, part of the 01 line, weighs approximately 3.8 kg and has dimensions of 150mm x 184mm x 66.5mm. It enhances the Direct Current (DC) bus continuous power in the converter units and infeed power supply, helps minimise line current harmonics and hinders system perturbations. It has a 20 Amperes continuous current rating, 60 Watts power dissipation, and possesses a nominal inductor of 3 x 1000 µH. It complies with EN 61000-2-4 EMC industrial standards. Employing 3 x AC 400 - 500 Volts mains voltage and 50 – 60 Hertz mains frequency, it can operate without issues within -10o C to 50o C. This device comes complete with terminal lugs, is resistant to 15 g shock for 11 ms, and can comfortably operate up to 1000 meters above sea level.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: HNL01.1E-1000-N0020-A-500-NNNN
  • Type: A mains choke
  • Line: 01
  • Weight: 3.8 kg
  • Dimensions: 150 mm x 184 mm x 66.5 mm
  • Continuous Current Rating: 20 Amperes
  • Power Dissipation: 60 Watts
  • Nominal Inductance: 3 x 1000 µH
  • Degree of Protection: IP 10
  • Application: line rectifier supply units
  • Compliance: EMC industrial standards, EN 61000-2-4
  • Mains Voltage Rating: 3 x AC 400 – 500 Volts
  • Mains Frequency: 50 – 60 Hertz
  • Operating Temperature: -10o C to 50o C
  • Storage Temperature: -40o C to 70o C
  • Installation Height Range: 0 - 1000 meters above sea level
  • Terminal: Terminal lugs
  • Shock Resistance: 15 g for 11 ms according to IEC 60068-2-27
