S image of HNL02.1R-0980-C0023-A-480-NNNN

HNL02.1R-0980-C0023-A-480-NNNN

by Bosch Rexroth Indramat
$1,638.75 - $2,824.40
$1,638.75
$1,638.75 - $2,824.40
$1,638.75

Available, Shipping Varies

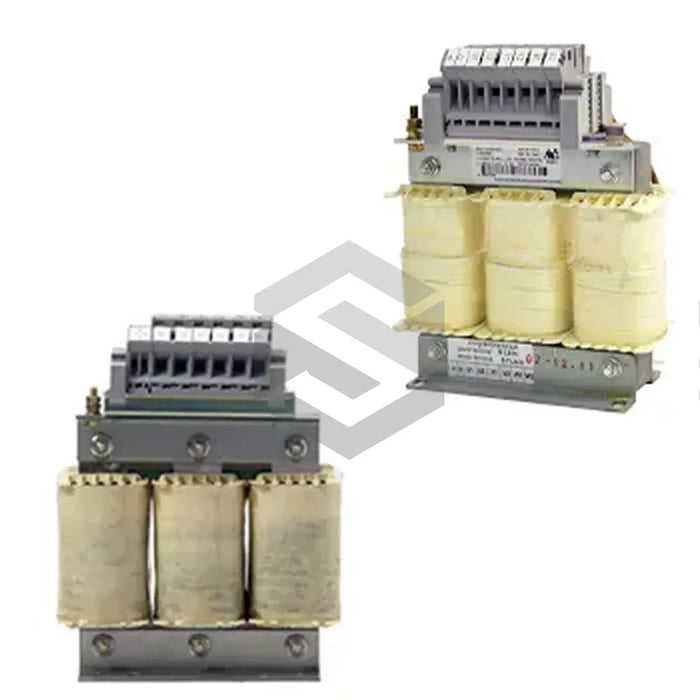

The Bosch Rexroth Indramat HNL02.1R-0980-C0023-A-480-NNNN mains choke is designed to lower the harmonics in the mains current. This choke, weighing 13kg, offers 980µH nominal inductance and uses M6 screws for installation, which can be conducted either vertically or horizontally. Promoting environmentally friendly use, materials like silicone and asbestos are absent from its composition. It features a temperature contact with a switching capacity of 30VAC or 24VDC, and three capacitors with 10µF capacitance maintained at the mains input even after the unit is turned off. The choke's specifications include a mains connecting voltage of 3 x 400 to 480VAC with a tolerance limit of -15/10%, a nominal frequency rating of 50/60Hz with +/-2% tolerance, and is designed for installation inside a control cabinet. The product also comes with a one-year backup support.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

HNL02.1R-0980-C0023-A-480-NNNN

Main Function

Lowering harmonics triggered in the mains current

Nominal Inductance

980µH

Weight

13kg

Installation

Horizontal or Vertical

Environmentally Safe

Yes

Temperature Contact Switching Capacity

30VAC or 24VDC

Capacitance

10µF

Mains Voltage Tolerance

-15/10%

Nominal Frequency

50/60Hz

Type Plate Characters

20x2

Line Code

02

Fan Power Consumption

2.7W

Max Tightening Torque

6Nm

Installation Location

Inside a control cabinet

Backup Support Duration

One year
