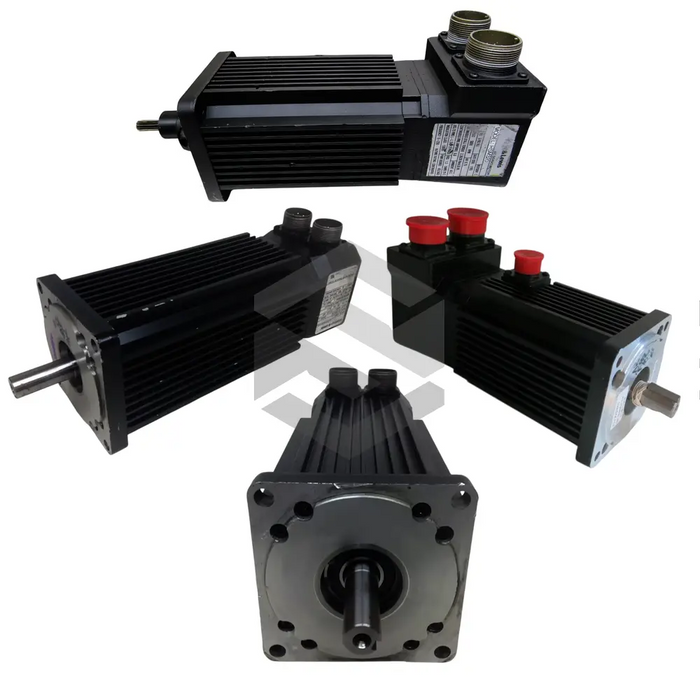

HSM320

The Kollmorgen HSM320 servo motor is a high-performance member of the HSM Brushless Servo Motors family, designed for precision motion control in industrial automation. This unit, identified by part_number HSM320 and manufactured by manufacturer Kollmorgen, delivers a balanced mix of power and efficiency with a Maximum Speed 4000 RPM rating and a Winding Resistance of 2.3 Ohms b110%. The motors compact design weighs just 7.7 kg (Net) and features a Rotor Moment Of Inertia of 0.00033 kg-m B2, enabling rapid acceleration and deceleration cycles. Engineered to interface seamlessly with modern control systems, the HSM320 supports both industry-standard Encoder Connector (22 AWG/0.34 mm B2) and robust Power Connector (16 AWG/1.5 mm B2) configurations. With an ambient operating range that accommodates a broad spectrum of applications, this servo motor sets the stage for reliable, high-speed motion control.

Performance characteristics of the HSM320 underscore its suitability for demanding tasks. The Torque Constant (sine Wave Kt) of 0.33 Nm/A (2.92 lb-in/A) and the Torque Constant (square Wave Kt) of 0.36 Nm/A (3.19 lb-in/A) ensure consistent torque delivery across the operating envelope. Electrical parameters are optimized with a Winding Inductance of 3.6 mH and a Voltage Constant (ke) of 43 V/krpm, providing efficient energy conversion and smooth current response. Thermal management is addressed through a Thermal Resistance of 1.0 B0C/Watt, enabling continuous operation under heavy loads with minimal temperature rise. The motors precision alignment and low-vibration design, combined with a Radial Load Force Rating At 5000 RPM of 45 lb (20.4 kg), support stable operation under side loads. Complemented by a Shipping Weight of 9.3 kg (20.5 lb), the HSM320 facilitates logistics planning without compromising on performance.

Reliability and integration are hallmarks of the HSM series. Built with premium materials and stringent quality controls, the HSM320 guarantees longevity in harsh industrial settings. Its compact footprint and standardized connector layout simplify integration with Kollmorgen drives and third-party controllers, reducing installation time. Typical applications span packaging machinery, automated assembly lines, and labeling systems, where consistent repeatability and low downtime are paramount. Backed by Kollmorgens global support network and warranty provisions, the HSM320 delivers dependable performance that aligns with stringent production schedules.
