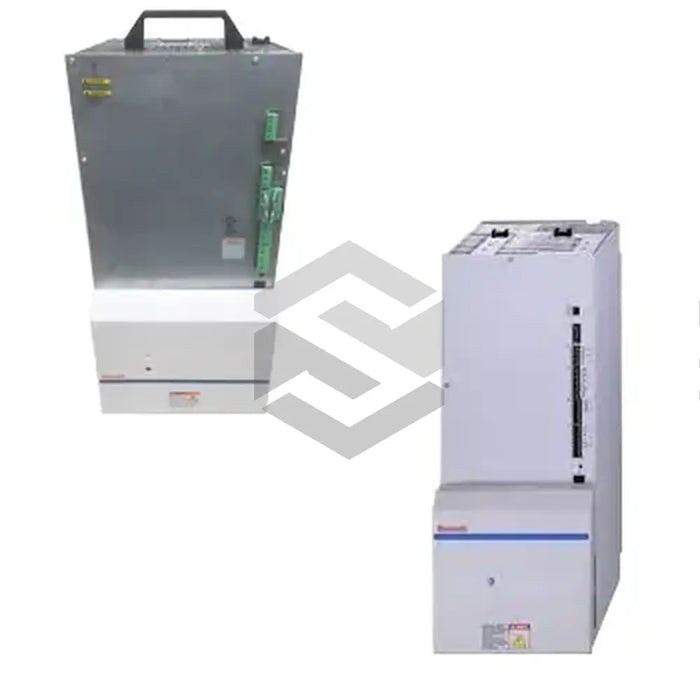

series image of HVE03.1-W030N

HVE03.1-W030N

by Bosch Rexroth Indramat
$18,914.70 - $18,914.70
$18,914.70
$18,914.70 - $18,914.70
$18,914.70
In Stock, Ships 3 - 5 Days
The HVE03.1-W030N, a 2nd generation power unit produced by Bosch Rexroth Indramat, is a component of the modular AC drive system. It enables the operation of several drive controllers at once without necessitating additional power units. When used in generator mode, the HVE03.1-W030N dissipates regenerated energy as heat via a bleeder resistor. Its built-in power contactor ensures isolation of drive controllers from the power supply while maintaining voltage control for all connected controllers. This unit also monitors the drive system and can be paired with a DC bus choke GLD for optimum power usage adjustment. Designed to connect to a 3 x AC 380 to 480V mains voltage and motors of a maximum continuous mechanical power of 60 kW, this power unit has a distinct continuous bleeder power of 1.5 kW, peak bleeder power of 100 kW, and maximum regenerated energy of 100 kW. Weighing 16kg, it can function between 5 and 45 degrees Celsius, and up to an elevation of 1000 meters above sea level.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: HVE03.1-W030N
  • Generation: 2nd
  • Product Type: Power Unit
  • Product Series: HVE
  • Operating Mode: Generator Mode
  • Power Source: 3 x AC 380 … 480 V
  • Mains Separation: Internal Power Contactor
  • Voltage Regulation: All Connected Controllers
  • System Monitoring: Yes
  • Motor Power: Maximum Continuous Mechanical Power of 60 kW
  • Continuous Bleeder Power: 1.5 kW
  • Peak Bleeder Power: 100 kW
  • Maximum Regenerated Energy: 100 kW
  • Weight: 16 kg
  • Basic Loss: 175 kW
  • Power Loss: 355 kW at maximum continuous output
  • Operating Temperature: 5 to 45 degrees
  • Storage and Transport Temperature: -30 to 85 degrees
  • Installation Elevation: 1000 meters above sea level
