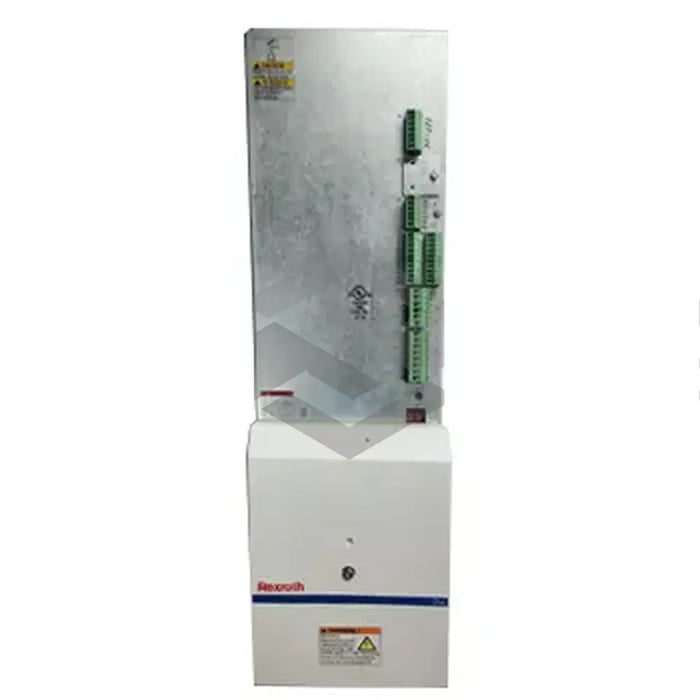

series image of HVE03.2-W030

HVE03.2-W030

by Bosch Rexroth Indramat
$14,300.00 - $14,300.00
$14,300.00
$14,300.00 - $14,300.00
$14,300.00
In Stock, Ships 3 - 5 Days
The HVE03.2-W030 is a second-generation power supply unit from Bosch Rexroth, created to connect with HDD and HDS drive controllers. This DIAX04 family unit integrates a power rectifier to process three-phase AC voltage and features a communication control bus voltage. It can connect to several drive controllers simultaneously, maintain a frequency range of 50Hz - 60Hz +/- 2Hz, and operate between 5°-45°C. The HVE03.2-W030, when combined with a GLD DC bus choke, boosts usable DC bus continuous power. The unit employs short-term loading to stimulate spindle and feed drives acceleration. However, it may endure damage under overload. Despite being vulnerable to intentional access and heat generation during operation, it can work outside specified parameters by adjusting for load factors. The unit also permits a 10mF additional capacitance connection to the DC bus and ensures global shipping availability.
30 Day Warranty
Technical Specifications
  • Product Type: Power Supply Unit (PSU)
  • Manufacturer: Bosch Rexroth
  • Family Group: DIAX04
  • Compatible With: HDD and HDS drive controllers
  • Connectivity: Internal power contactor; Control bus voltage
  • Compatible Components: GLD DC bus choke
  • Operating Frequency: 50Hz to 60Hz +/-2Hz
  • Operating Temperature: 5°C to 45°C with rated data
  • Maximum Load: Dependent on module connection
  • Additional DC Bus Capacity: 10mF
  • Heat Loss: Inherent in operational environment
  • Condensation: Possible with cooling unit use
  • Protection: Not Protected against Intentional Access
  • Surface Temperature: Becomes very hot during operation
  • Shipping: Available globally.
