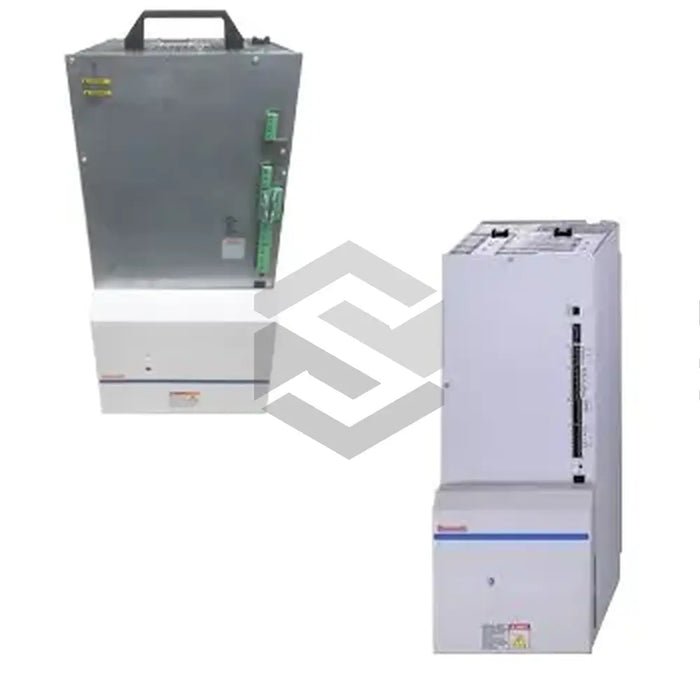

HVE04.2-W075
The HVE04.2-W075, a product of Bosch Rexroth Indramat, is a power supply unit that offers an unregulated DC bus voltage to its linked drive controllers. It can effectively operate in conjunction with multiple drive controllers and features an integrated contactor for power shutdown purposes. Boasting compact design for confined spaces, the unit delivers power reflective of its own voltage. The unit can store up to 144W energy per mF of auxiliary capacitance when connected to a 3 x 400VAC, and must be installed in a ventilated control cabinet. Measuring 250mm in width, it provides continuous DC bus power of 90 kW, peak power of 270 kW for 0.3 seconds, and short-term power of 180 kW when used with a GLD20 DC bus choke and a 3 x 480VAC mains supply. Operable with networks grounding neutrally, it has a 160A maximum fusing and supports 80A mains current without the DC choke and 120A with at 400V and 480V DC bus voltage respectively. Shipping of this globally-available unit is handled by trusted logistics partners.
