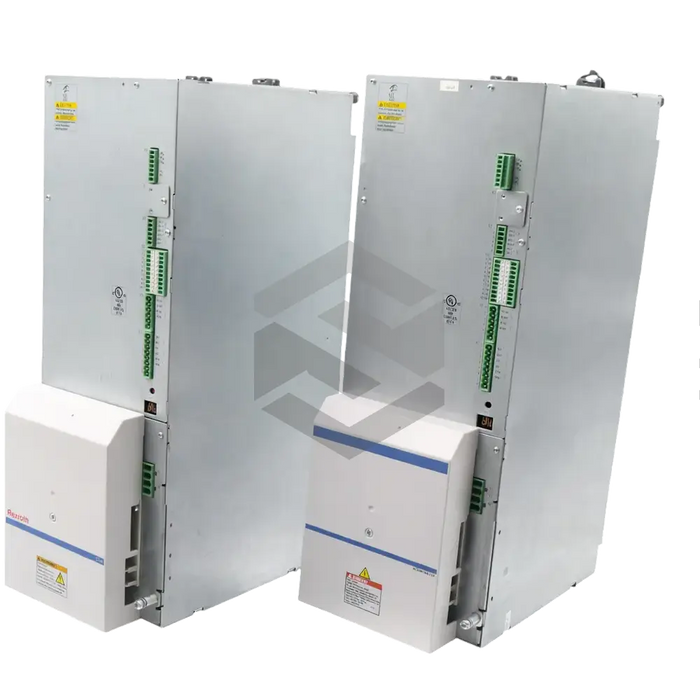

S image of HVR02.2-W010

HVR02.2-W010

by Bosch Rexroth Indramat
$3,734.82 - $3,734.82
$3,734.82
$3,734.82 - $3,734.82
$3,734.82

In Stock, Ships Fast

The HVR02.2-W010 by Bosch Rexroth Indramat is a 2nd generation power supply unit that forms part of a multi-drive controller system. It features a power rectifier to turn 3-phase AC voltage into regulated DC bus voltage, with the capacity for energy to be regenerated back to the mains during generative operation. This unit is specifically designed to provide power to HDD and HDS drive controllers and is compatible with motors having 36 kW continuous mechanical power. Ambience conditions include an operating range of 5-45 degrees, storage temperature range of -30 to 85 degrees, and a maximum elevation limit of 1000 meters. This power supply comes with a protection class of IP 10, an air cooling mode, and a nominal power of 10 kW. Its electrical specifications include a DC bus voltage of 750V and various power outputs and losses. Regular operation of this unit is recommended to maintain its built-in sensitive electrolytic capacitors.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

HVR 2nd generation power supply units

Power Rectifier

3-phase AC voltage into regulated DC bus voltage

Energy Regeneration

Yes

Brake Control

Yes

Connectivity

HDD and HDS drive controllers

Maximum Motor Power

36 kW

Operating Temperature

5 to 45 degrees

Storage and Transport Temperature

-30 to 85 degrees

Maximum Installation Elevation

1000 meters above sea level

Protection Class

IP 10

Operation Requirement

Operate once a year for at least 1 hour

Cooling Mode

Air

Nominal Power

10 kW

DC Bus Voltage

750V

DC Bus Continuous Power

10 kW

DC Bus Peak Output

30 kW

DC Bus Short-Time Power

25kW

Power Loss at the Maximum Continuous Output

300 W

Basic Losses

150 W

Power Losses per kW DC Bus Continuous Power

15 W/kW
