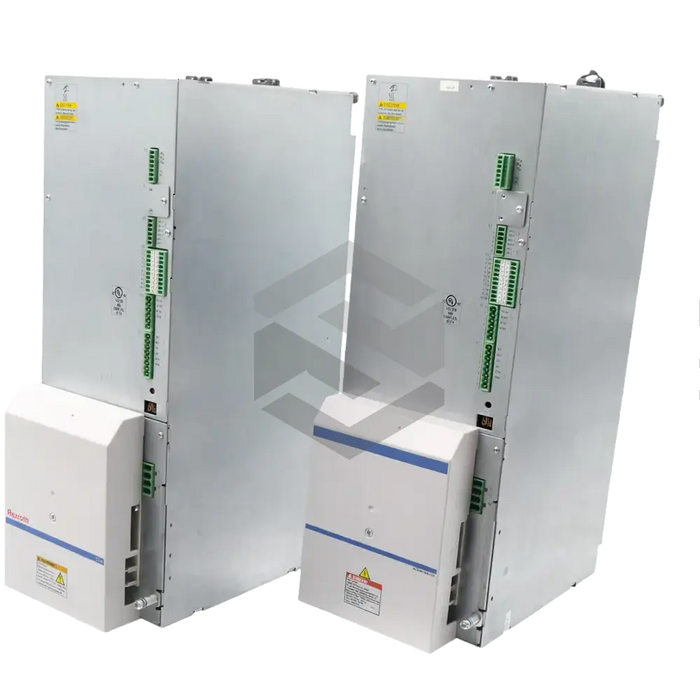

The HVR03.1-W045N is a top-tier power supply unit, engineered by Bosch Rexroth Indramat. As a member of the DIAX04 product line, this second-generation unit is designed to provide reliable control voltage for Bosch's HDS and HDD drive and control systems. It operates optimally using a regulated DC bus voltage and relies on a mains voltage from 3 x 380 to 480VAC (tolerance +/-10%) at a frequency range of 50 to 60Hz. Capable of servicing motors up to 36kW, it features integrated monitoring functions and a power rectifier. This unit, boasting an IP 10 protection rating under IEC 529 specifications, must be housed in a closed unit or control cabinet. An additional highlight is the included bleeder module, which ensures smooth motor braking during mains failure. Operational temperature tolerances span from 5°C t0 45°C.
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: HVR03.1-W045N
  • Product Type: Power Supply Unit
  • Generation: Second
  • Product Group: DIAX04
  • Voltage Usage: Regulated DC bus voltage
  • Mains Voltage: 3 x 380to 480VAC with a tolerance limit of +/-10%
  • Frequency Range: 50to 60Hz
  • Use Case: Control and power voltage supply for HDS and HDD drive and control systems
  • Additional Features: Monitoring functions
  • Power Rating: Motors with a continuous mechanical power of up to 36kW
  • Mounting Requirement: Closed housing or a control cabinet
  • Protection Rating: IP 10 according to IEC 529 specifications
  • Built-in Components: Power rectifier
  • Operating Mode: Regulated DC bus voltage for the connected drive controller
  • Additional Component: Bleeder module
  • Operational Limitations: Extreme temperature fluctuations or underwater use
  • Operational Temperature: 5°C and 45°C with rated data
  • Penetration Protection: Objects with diameters of more than 50mm
