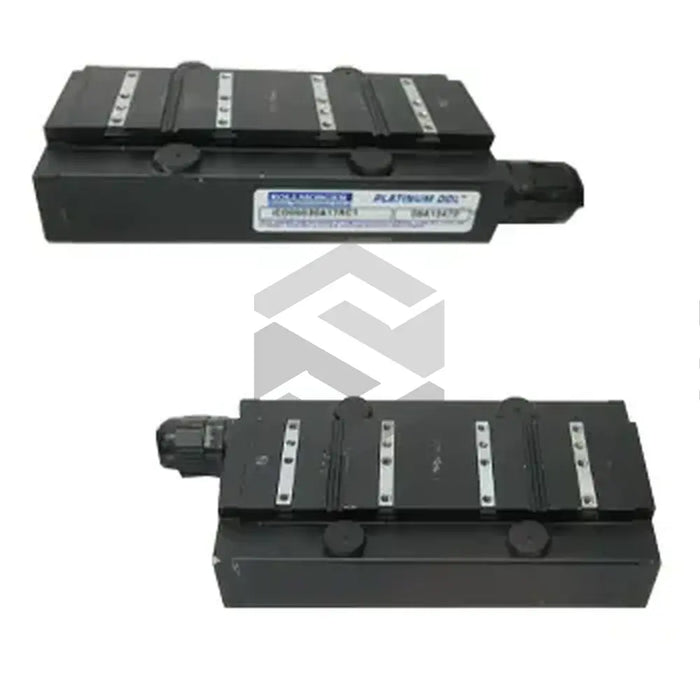

S image of ICD05030A1TRC1

ICD05030A1TRC1

by Kollmorgen
$859.71 - $3,145.50
$859.71
$859.71 - $3,145.50
$859.71
The ICD05030A1TRC1, created by industry innovator Kollmorgen, is a Direct Drive Linear (DDL) Ironcore motor with a permanent magnet, frameless, and brushless design, minus the cogging, which ensures efficient operation. Its capabilities include high force density, high motor constant, and a peak force ranging between 165 and 1099N. Although maintenance-free as it uses no gears, lubrications, or screws, this motor offers enhanced machine reliability, decreases noise, and ensures quick power transmission without backlash. It has a reputation for low thermal losses, high resolution, precise positioning, and high peak acceleration. Its low profile and attraction force suits it as a replacement for ironless applications. This model, designed for manifold tasks like drilling, milling, and cam grinding, offers a peak force and continuous force of 550N and 171N, respectively. It also comes with thermal protection via a thermistor and a 400mm termination option.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Type

Direct Drive Linear (DDL) Motor

Model Number

ICD05030A1TRC1

Design

Permanent magnet, Frameless, Brushless, Anti-cogging, Ironcore

Maintenance Required

No

Key Features

High force density, High motor constant, Peak force range: 165-1099N, Low profile, High attraction force

Thermal Losses

Low

Resolution and Position Accuracy

High

Peak Acceleration

High

Magnet Design

Modular

Application

Machine tools, Tab bonding, Drilling, Milling, Cam grinding

Peak Force

550N

Continuous Force

171N

Series

05 (Low profile ironcore)

Magnetic Way Width

30mm

Winding Code

Y

Thermal Protection Option

Thermistor

Termination Option

400mm
