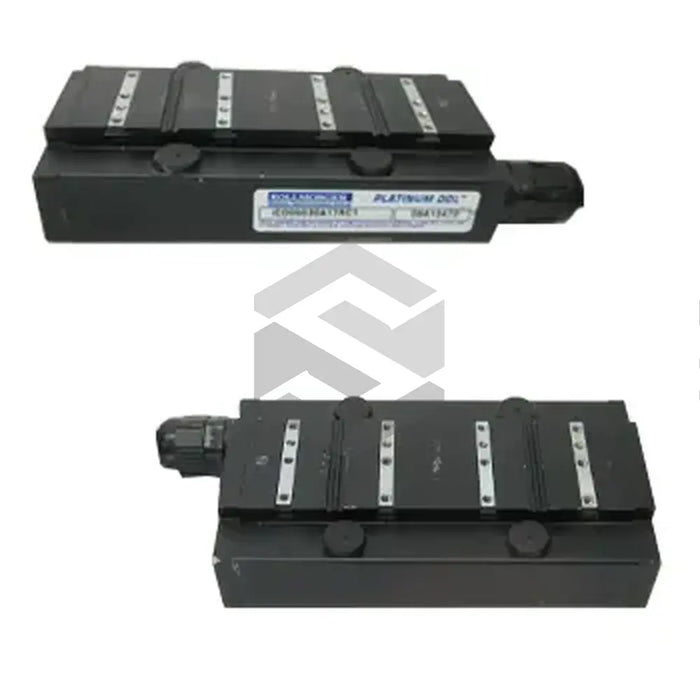

ICD1003A1P102

Original price $0.00 - Original price $0.00
Original price
Request a Quote
$0.00 - $0.00
Current price Request a Quote

Request a quote

Add a Message
The ICD1003A1P102 is an ironcore Direct Drive Linear (DDL) motor, created by the industry-leading motion technologies provider, Kollmorgen. This top-performing motor replaces the need for mechanical transmissions, gears, and lubrication, reducing noise and enhancing velocity smoothness and machine reliability. The ICD1003A1P102 stands out for its three-phase, frameless, brushless, and permanent magnet design, offering constant accuracy and high throughput. This low-profile ironcore motor, part of the 10 series ICD, features a 30mm magnetic way width, Y winding code, and 400mm termination option. It delivers a peak force of 330N and a continuous force of 104N. With a patented anti-clogging design, it ensures smooth operation and offers high force per frame size. These attributes make it suitable for various applications, ranging from wafer handling to carpet tufting.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Kollmorgen

Product


ICD1003A1P102

Product Type


Ironcore DDL Motor

Design Type


Frameless, Brushless, Three-Phase, Permanent Magnet

Anti-clogging Design


Yes

Attraction Force


Yes

Thermal Losses


Low

Motor Constant


High

Peak Force


330N

Continuous Force


104N

Weight


1.1KG

Magnetic Way Type


MCD030

Magnetic Way Weight


2.70KG/m

Series


10

Profile


Low Profile

Width of Magnetic Way


30mm

Winding Code


Y

Termination Option


400mm

Magnetic Attraction


1.06kN

Thermal Resistance


2.05

Maximum Allowable Coil Temperature


130 Degrees Celsius
