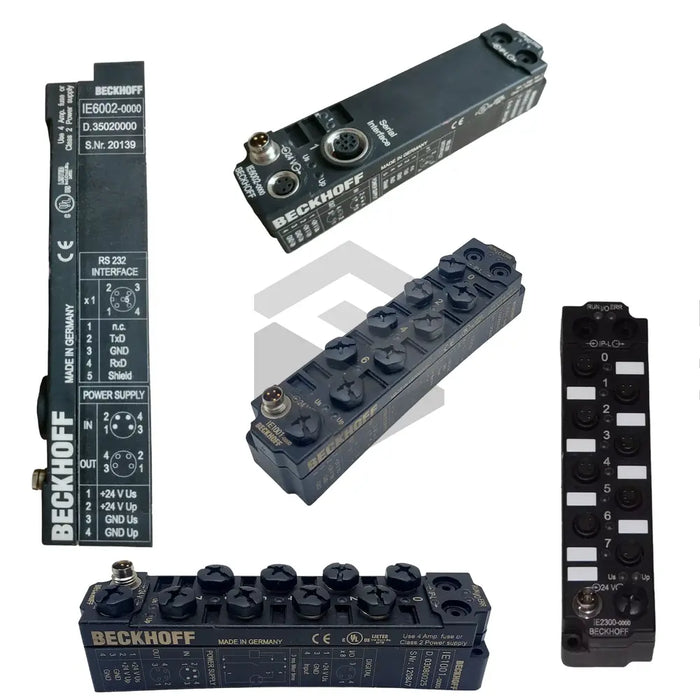

S image of IE2041-0000

IE2041-0000

by Beckhoff
$962.50 - $962.50
$962.50
$962.50 - $962.50
$962.50

In Stock, Ships 1 - 3 Days

The Beckhoff IE2041-0000 is an output module from the IE Extension Box Series, designed for robust industrial automation systems with IP65, IP66, and IP67 protection, making it resistant to dust, water, and harsh weather conditions. It features 8 output channels using M8 screw connectors for secure and reliable electrical connections, suitable for various loads including ohmic, inductive, and lamp type. The module operates on a nominal 24V output with a tolerance of ±15%, and each channel supports up to 2 amperes with a total current rating of 12 amperes. It is short circuit proof and rated to handle a maximum cumulative current of 4 amperes per group of channels. The module requires minimal auxiliary power, consuming about 50 mA per channel, with an additional 25 mA from the US control voltage. It operates within a temperature range of 0 to 55°C and can be stored between -25 to 85°C, making it versatile for varied industrial applications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Beckhoff

Product Series

IE Extension Box Series

Product Model

IE2041-0000

Protection Rating

IP65/IP66/IP67

Outputs

8

Output Type

M8 screw connectors

Suitable Load Types

Ohmic, inductive, lamp type

Nominal Voltage Output

24V

Voltage Deviation

±15%

Maximum Output Channel Current

2A

Overall Current Rating

12A

Section Output Ratings

Channels 0-3: 4A, Channels 4-5: 4A, Channels 6-7: 4A

Short Circuit Protection

Yes

Auxiliary Power Consumption

50mA per channel

Control Voltage Current Consumption

25mA

Power Connection

Two male M8 4-pin sockets

Process Image Width

8 outputs

Operating Temperature

0 to +55°C

Storage Temperature

-25 to +85°C
