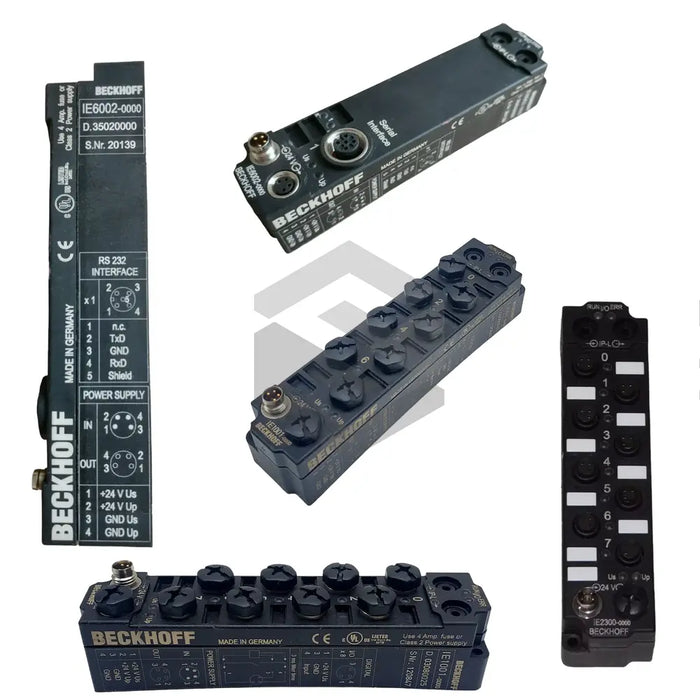

The Beckhoff IE2311 is an extension unit from the IE Extension Box Units series. It provides 4 inputs + 4 outputs with M8 screw type connections, supports 24 V DC rated load voltage, delivers a max output current of 0.5 A per channel short-circuit proof, and features IP65/66/67 protection for versatile installation.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Auxiliary Power Current
typ. 20 mA per channel
Channels
4 inputs + 4 outputs
I/O Connections
M8 screw type
Ingress Protection
IP65/66/67 (EN 60529)
Input 0 Signal Voltage
-3…+5 V
Input 1 Signal Current
6 mA (EN 61131-2 type 2)
Input 1 Signal Voltage
11…30 V
Input Filter
0.2 ms
Load Type
ohmic, inductive, lamp load
Max Output Current
0.5 A per channel, short-circuit proof
Operating Temperature
0…55°C
Rated Load Voltage
24 V DC (-15%/+20%)
Sensor Supply
Control voltage, max 0.5 A, short-circuit proof
Short-circuit Current
typ. 1.5 A
Storage Temperature
-25…+85°C
