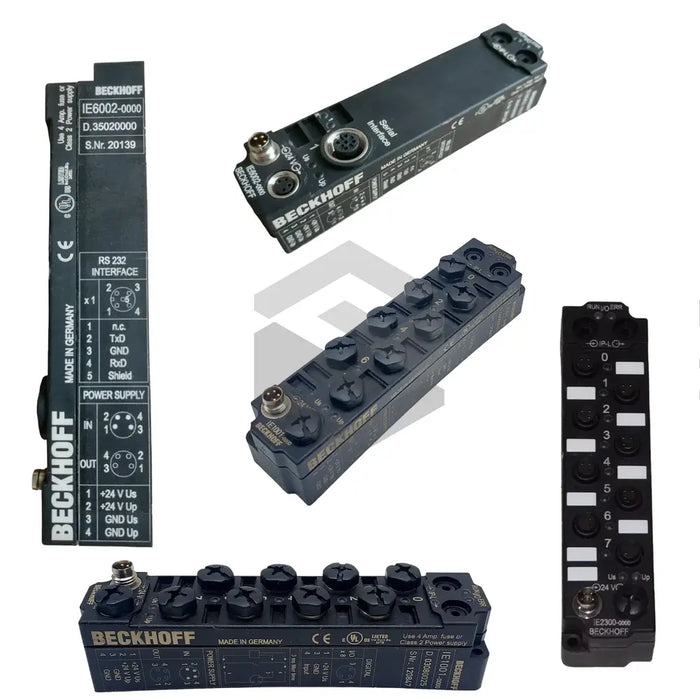

S image of IE2321

IE2321

by Beckhoff
$447.84 - $447.84
$447.84
$447.84 - $447.84
$447.84

Available, Shipping Varies

The IE2321 is a compact extension box manufactured by Beckhoff in the IE Extension Box Units series, offering 4 inputs and 4 outputs with a 3.0 ms input filter. It operates at a rated load voltage of 24 V DC (-15%/+20%), each output supporting 2 A per channel short-circuit proof for reliable industrial automation. A control supply current of 25 mA and an auxiliary supply current of 30 mA per channel enable low-power integration, while support for ohmic, inductive, and lamp load types expands versatility in compact systems.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Auxiliary supply current

30 mA per channel (typ.)

Channels

4 inputs + 4 outputs

Control supply current (no sensor)

25 mA

Downstream connection

M8 4-pin a-coded female

I/O connections

M8, screw type

Input filter time

3.0 ms

Input signal voltage (Type 0)

-3…+5 V

Input signal voltage (Type 1)

11…30 V, 6 mA input

Load type

Ohmic, inductive, lamp

Max output current

2 A/channel, short-circuit proof; 4 A total

Power feed connection

M8 4-pin a-coded male

Rated load voltage

24 V DC (-15%/+20%)

Sensor supply

0.5 A max, short-circuit proof
