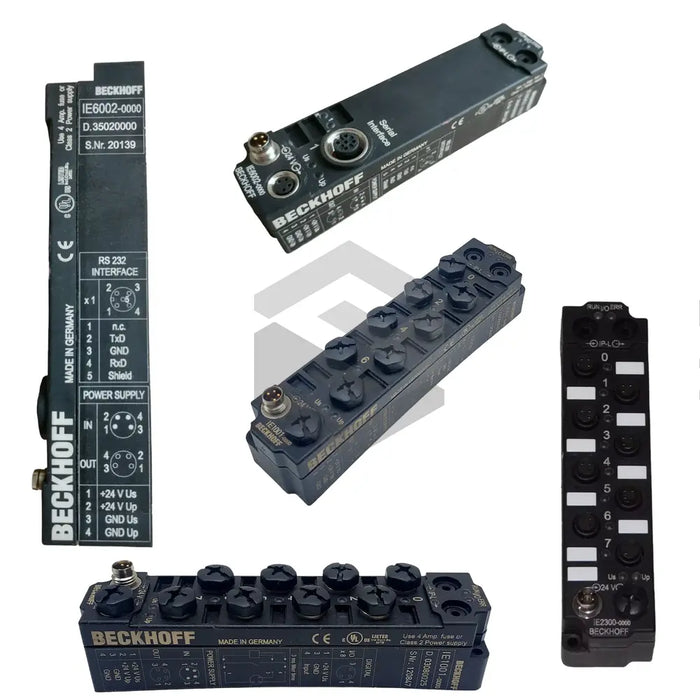

IE2403-0000

The Beckhoff IE2403-0000 is a compact, industrial-grade I/O module in the IE Extension Box Units series, designed to consolidate discrete signal management into a single housing. This device features 8 inputs + 8 outputs, leveraging robust spring-loaded connectors for reliable contact in high-vibration and thermally dynamic environments. It supports a rated load voltage of 24 V DC (-15%/+20%) and integrates a short-circuit proof sensor supply up to 0.5 A to ensure continuous operation under fault conditions. Manufactured by Beckhoff, the module offers turnkey deployment for distributed automation architectures, minimizing footprint while maximizing channel density. Its construction prioritizes signal integrity, reducing maintenance needs and extending service intervals.

Detailed technical specifications define the IE2403-0000’s electrical and mechanical characteristics. Each input channel includes an integrated 3.0 ms input filter for noise suppression, classifying signals below -3...+5 V as logic '0' and those between 11...30 V; 6 mA input current as logic '1' in compliance with EN 61131-2 Type 2. Output channels deliver a maximum load current of 0.5 A/channel and withstand short-circuit currents of typically 1.5 A before current limiting engages. The module’s auxiliary power current of typ. 20 mA/channel supports its internal logic and switching components with minimal overhead. Power distribution is handled via standardized M8 male (feed) and M8 female (downstream) 4-pin A-coded connectors, streamlining system cabling and polarity management.

Operational performance is optimized for a broad temperature range, rated for operating temperatures of 0...55 °C and storage temperatures from -25...+85 °C. It accommodates resistive, inductive, and lamp-based loads, with inherent protection against inductive voltage transients thanks to channel-level short-circuit proofing. The spring-loaded I/O connections maintain constant pressure across varying pin tolerances and thermal expansion, ensuring contact resistance remains low over extended cycles. Process integration leverages a direct memory map encompassing 8 bits for inputs and 8 bits for outputs in the PLC’s global data image, enabling deterministic execution and real-time control. Combined, these features deliver stable, high-speed switching and fault recovery for demanding automation tasks.

System integration is simplified through compatibility with EtherCAT networks and Beckhoff control environments, making the IE2403-0000 ideal for modular machine design, conveyor systems, packaging lines, and robotic workcells. Its compact form factor and standardized connectors facilitate rapid installation and replacement in the field. The module’s built-in short-circuit proofing and wide supply tolerances reduce auxiliary protection requirements and increase system uptime. Targeted at industrial automation engineers, this Beckhoff I/O unit delivers reliable signal processing in distributed and centralized architectures alike.
