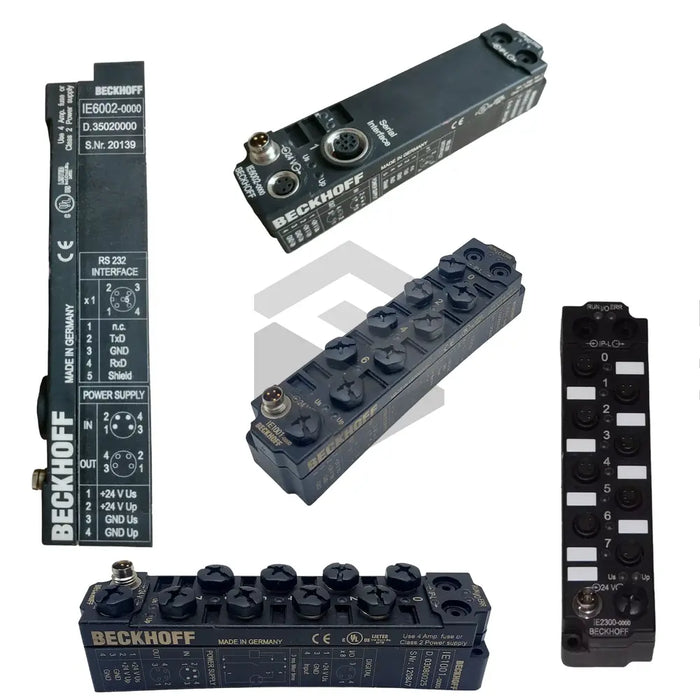

S image of IE2808

IE2808

by Beckhoff
$454.23 - $528.24
$454.23
$454.23 - $528.24
$454.23

In Stock, Ships Fast

The Beckhoff IE2808 from the IE Extension Box Units series is a compact I/O extension unit featuring 16 outputs via a 25-pin D-sub UNC4-40 socket, each channel delivering a 0.5 A max output current per channel at a 24 V DC nominal output voltage. Its rugged housing measures 30 mm x 126 mm x 26.5 mm and provides IP65/66/67 protection. The unit draws a typical 30 mA auxiliary power current and supports a total output current of 4 A, with channels that are short-circuit proof and able to deliver reliable power to actuators, relays, and indicators. The process image comprises 16 outputs and 16 diagnostic inputs, facilitating precise system monitoring. With an operating temperature range of 0–55 °C and seamless integration into EtherCAT-based networks, the IE2808 is engineered for robust, decentralized industrial automation applications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Auxiliary power current

typ. 30 mA

Downstream connector

M8 female, 4-pin, A-coded

Housing dimensions

30 mm x 126 mm x 26.5 mm

Load type

ohmic, inductive, lamp loads

Max output current per channel

0.5 A, short-circuit proof

Max short-circuit current

1.5 A

Nominal output voltage

24 V DC (-15%/+20%)

Number of outputs

16

Operating temperature

0…55°C

Output connections

25-pin D-sub UNC4-40 socket

Power feed connector

M8 male, 4-pin, A-coded

Process image

16 outputs, 16 diagnostic inputs

Protection rating

IP65/66/67 (EN 60529)

Storage temperature

-25…+85°C

Supply input current (Us)

25 mA

Total output current

4 A
