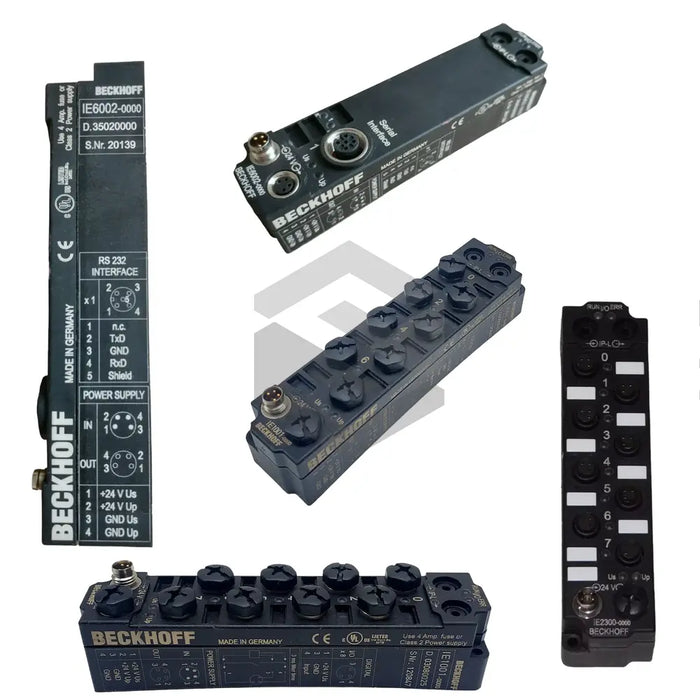

S image of IE3312-B520-0000

IE3312-B520-0000

by Beckhoff
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The Beckhoff IE3312-B520-0000 from the IE Extension Box Units series is a 4-channel analog input extension box designed for precise thermocouple measurements. It operates on 24 V DC and features a resolution of 0.1 °C per digit across four thermocouple inputs via M12 sockets. The module supports a measuring range of -100 °C to +1370 °C (type K) with a measurement accuracy of ±0.5% FS and offers configurable conversion times from 70–250 ms and five selectable input filters. Electrical isolation of 500 V between channels and control voltage ensures safety, while the unit meets EMC standards EN 61000-6-2/6-4 and vibration/shock standards EN 60068-2-6/2-27, delivering reliable performance in industrial environments.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Conversion Time

70‑250 ms (configurable)

Current Consumption

40 mA

Downstream Connection

1 x M8 female, 4‑pin, a‑coded

EMC Standards

EN 61000‑6‑2/6‑4

Feed Connection

1 x M8 male, 4‑pin, a‑coded

Input Connection

M12 socket, 2‑wire for TC

Input Filter

5 configurable variants

Measurement Accuracy

<±0.5% FS

Measuring Range (type K)

-100 to +1370°C

Number of Inputs

4

Operating Temperature

0 to +55°C

Process Image Control/Status Width

4 x 8 bit

Process Image Data Width

4 x 16 bit

Resolution

0.1°C

Sensor Types

J, K, L, B, E, N, R, S, T, U, mV

Storage Temperature

-25 to +85°C

Supply Voltage

24 V DC (-15%/+20%)

Vibration/Shock Standards

EN 60068‑2‑6/2‑27
