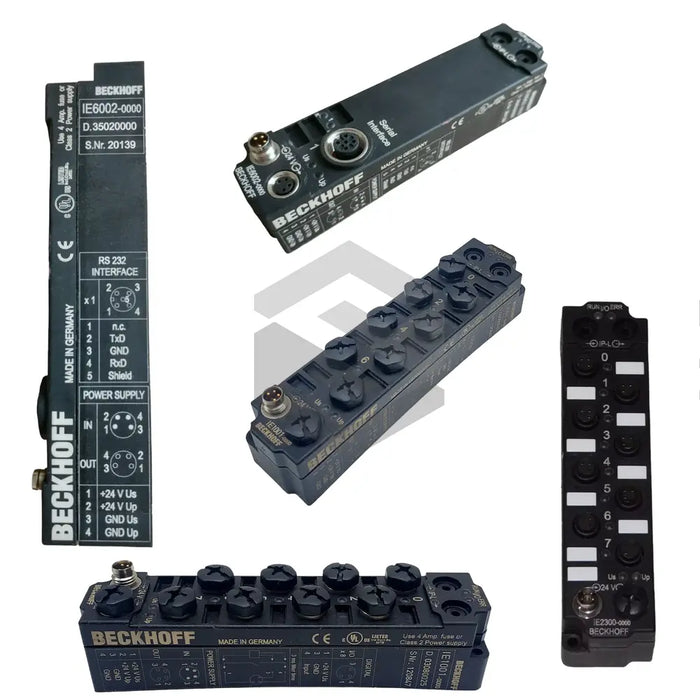

S image of IE4132-0000

IE4132-0000

by Beckhoff
$438.54 - $581.85
$438.54
$438.54 - $581.85
$438.54

In Stock, Ships 1 - 3 Days

The IE4132-0000 extension box from Beckhoff is part of the IE Extension Box Units and provides four analog outputs. It delivers 16-bit differential voltage signals up to ±10 V, features a conversion time under 4 ms, and includes IP65/66/67 protection. The unit operates on a 24 V DC supply (-15%/+20%), supports load resistance over 5 kΩ, and maintains measurement accuracy within ±0.1% FS. Output connections use secure M12 screw connectors.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Actuator Supply

From auxiliary voltage UP

Conversion Time

< 4 ms

Current Consumption

40 mA (excluding sensor current)

Downstream Connector

M8 female, 4-pin, A-coded

Enclosure Protection

IP65/66/67 (EN 60529)

Feed Connector

M8 male, 4-pin, A-coded

Load Resistance

> 5 kΩ

Measurement Accuracy

< ±0.1% FS

Nominal Voltage

24 V DC (–15%/+20%)

Number of Outputs

4 analog

Operating Temperature

0–55 °C

Output Connection

M12 screw

Process image bit width

4×16-bit data + optional 4×8-bit control/status

Resolution

16 bit

Signal Range

±10 V or 0–10 V

Storage Temperature

–25–85 °C
