IE6002-1001

Original price $819.36 - Original price $925.93
Original price
$819.36
$819.36 - $925.93
Current price $819.36

In Stock, Ships Fast

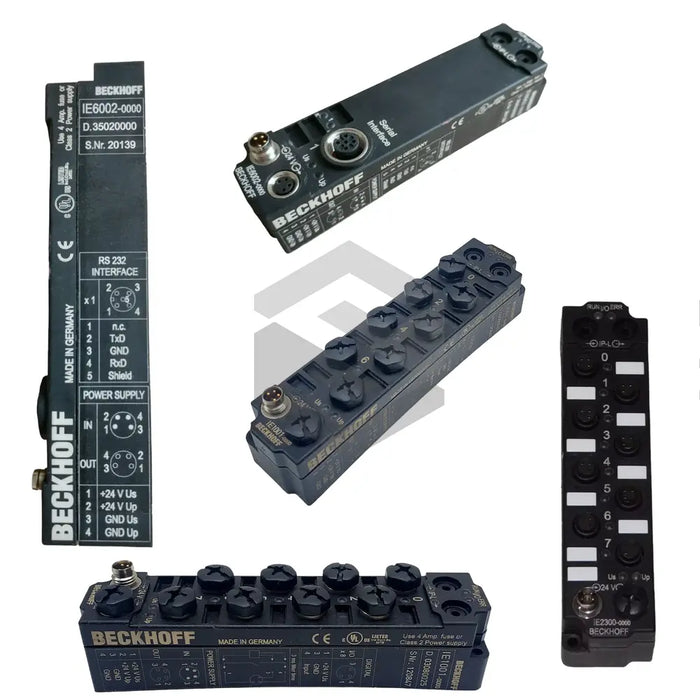

The Beckhoff IE6002-1001 is an RS232 interface module from the IE Extension Box Series, designed to mitigate noise and disturbances in automated system communications. Operating at a nominal 24 V DC with voltage tolerance from -15% to +20%, it supports data rates from 1200 to 115200 baud, with a standard rate of 9600 baud (8 data bits, no parity, 1 stop bit). This module includes TxD and RxD channels for data transmission and features M12 screw-type connectors for secure connections. With an IP65/66/67 rating, it is ideal for dust and moisture-prone environments. The module accommodates up to 15-meter extensions and ensures electrically isolated, transparent RS232 signaling. Powered via an M8 male socket, the module's power consumption is 40 mA. It offers a process image bit width of 3 × 8-bit user data and 1 × 8-bit control/status, expandable up to 5 × 8-bit user data.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Beckhoff

Model


IE6002-1001

Series


IE Extension Box Series

Function


RS232 connector

NominalVoltage


24V DC

VoltageTolerance


-15% to +20%

Channels


2 (TxD and RxD)

DataRates


1200 to 115200 baud

StandardBaudRate


9600

DataBits


8

Parity


None

StopBits


1

IngressProtection


IP65/66/67

ConnectorType


M12 screw-type

MaximumCordLength


15 meters

SignalIsolation


Electrically isolated signals

PowerConnector


M8 male socket

AdditionalConnector


MK8 female pin

PinCount


4

ConsumptionCurrent


40mA

BitWidthProcessImage


3 × 8-bit user data, 1 × 8-bit control/status

ExpandableBitWidth


5 × 8-bit user data
