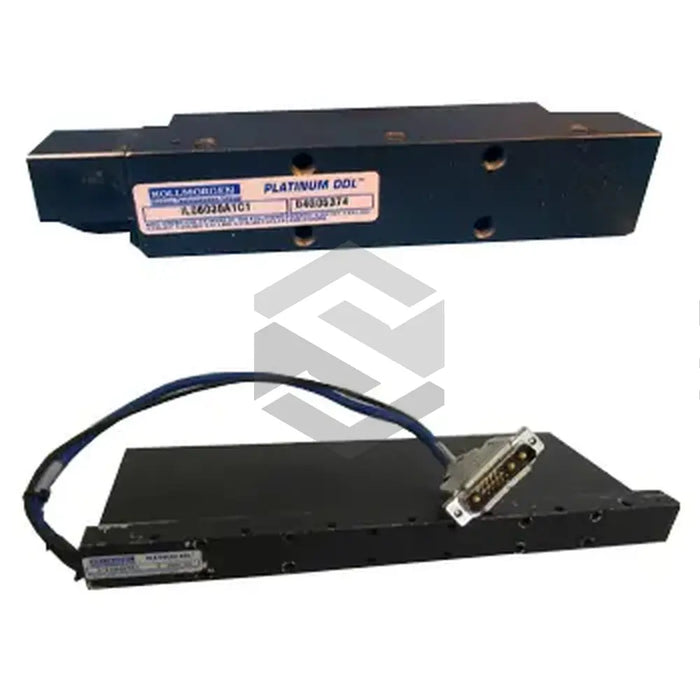

S image of IL06050A1C1

IL06050A1C1

by Kollmorgen
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The IL06050A1C1 is a notable product from Kollmorgen, a top-tier manufacturer regarded for their industry leadership in high-quality motion control aftermarket accessories. The IL06050A1C1, part of Kollmorgen’s ironless, non-cooled motor series, exemplifies the strong, durable, innovative, and customizable design that Kollmorgen delivers. Characterized by a continuous force of 49.7 N, a peak force of 200N, and a motor constant of 8 N/W, it showcases efficient performance. This device exhibits an electric time constant of 0.35 m/s, a peak acceleration of 63.6 g's, and zero magnetic attraction. Possessing thermal resistance of 1.260/watt, it operates up to a maximum temperature of 130℃, with its coil assembly weighing 0.32 kgs. With a variance in electrical inductance, resistance, and force constant, it sustains peak and continuous currents at both A1 and A4. This all endorses the IL06050A1C1 as a versatile motor solution, tailored to diverse application needs.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Name

IL06050A1C1

Series

Ironless Non-cooled Motor

Continuous Force

49.7 N

Peak Force

200N

Motor Constant

8 N/W

Unit Electric Time Constant

0.35 m/s

Maximum Theoretical Acceleration

63.6 g

Magnetic Attraction

0

Thermal Resistance (Coils to External Structure)

1.260/watt

Maximum Allowable Coil Temperature

1300

Coil Assembly Weight

0.32 kgs (+/- 15%)

Peak Current at A1

7 Amps

Peak Current at A4

14 Amps

Continuous Current at A1

1.7 A

Continuous Current at A4

3.5 A

Electric Resistance at 250, +/- 10%

2.2 to 8.6 Ohms

Electrical Inductance +/- 20%

11.6 to 23.3 mH L-L

Force Constant at 25°C, ±10%

14.3 to 28.5 N/Arms

Magnetic Way Type

MW
