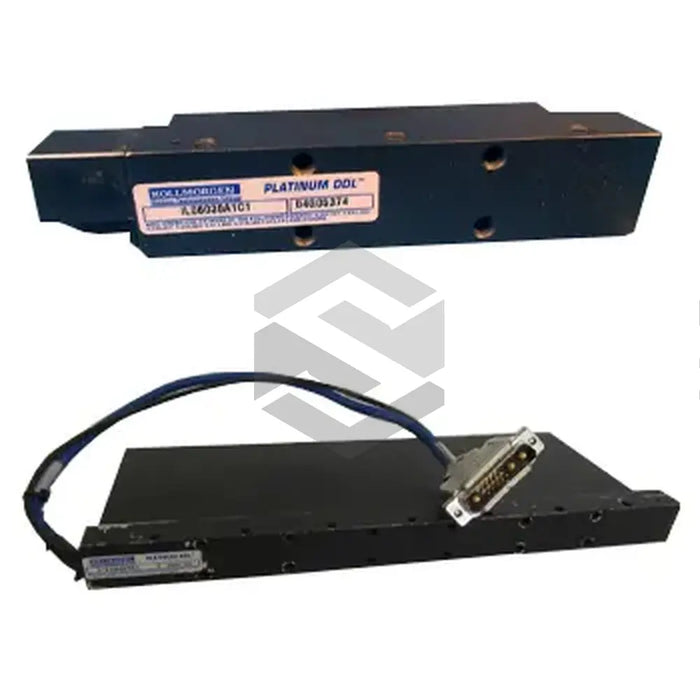

The IL18050A2TRC1 is an industrial motor produced by Kollmorgen, an internationally recognized manufacturer of automation products. This uncooled, ironless motor series boasts a continuous force of 131 N and a peak force of 600 N. It maintains a temperature of 25°C and presents a motor constant of 13.8N/W. The motor offers an electrical resistance between 0.7 to 25.7 Ohms (+/- 10%), and a back EMF constant expected to be between 0.30 to 1.77 Vpeak/in/sec. The device showcases a maximum theoretical acceleration of 64.5 g's and an electrical time constant of 0.35 m/s. The high-performing motor offers a thermal resistance of 0.4190/watt and is equipped with 0 magnetic attraction. It allows a maximum coil temperature of 130°C and weighs 0.72 kg (+/- 15%). The motor runs on a peak current of 7.1 A to 42.1 A with a consistent current of 1.5 to 9.2 Amps, offering an electrical inductance between 0.25 to 9.0 mH (+/- 25%).

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Code

IL18050A2TRC1

Motor Type

Ironless non-cooled motor series

Continuous Force

131 N

Peak Force

600 N

Motor Constant

13.8 N/W

Electrical Resistance

0.7 to 25.7 Ohms +/- 10%

Back EMF Constant ± 10%

0.30 to 1.77 Vpeak/in/sec

Maximum Theoretical Acceleration

64.5 gs

Electric Time Constant

0.35 ms

Magnetic Attraction

0

Thermal Resistance of the Coils to External Structure

0.4190/watt

Maximum Allowable Coil Temperature

1300

Motor’s Coil Assembly Weight

0.72 kgs (+/- 15%)

Peak Current

7.1 A to 42.1 A

Continuous Current

1.5 to 9.2 Amps

Electrical Inductance

0.25 to 9.0 mH +/- 25%

Magnetic Way Type

MW
