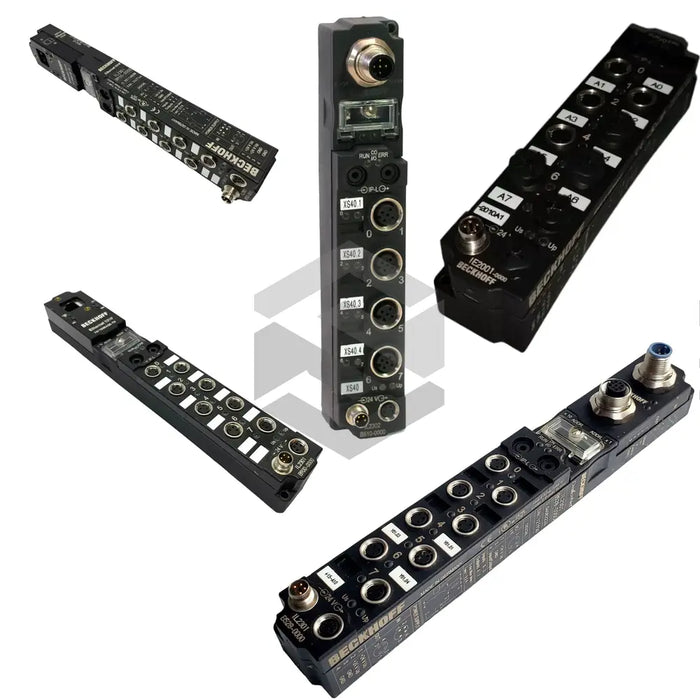

The IL2300-B510 is a Coupler Box from Beckhoff's IL Coupler Box Units. Featuring 4 inputs + 4 outputs and an IP65/66/67 enclosure, it meets EN 61131-2 Type 2 standards. Connectivity is via CANopen and a special IP-Link coupler supports up to 120 extension boxes. Power is supplied through an M8 4-pin socket at 24 V DC, with each channel rated 0.5 A.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Auxiliary Power Current
typ. 20 mA
Group 0 Input Voltage Range
-3…+5 V
Group 1 Input Current
6 mA
Group 1 Input Voltage Range
11…30 V
I/O Connection Type
8 mm snap-type terminals
Input Filter Time
3.0 ms
Load Types Supported
ohmic, inductive, lamp
Max. Output Current per Channel
0.5 A, short-circuit proof
Number of Channels
4 inputs + 4 outputs
Power Supply Downstream Connection
M8 female socket, 4-pin, a‑coded
Power Supply Feed Connection
M8 male socket, 4-pin, a‑coded
Rated Load Voltage
24 V DC (-15%/+20%)
Sensor Supply Current
max. 0.5 A, short-circuit proof
Short-Circuit Current
typ. 1.5 A
Special Feature
IP-Link coupler
Standards
EN 61131-2 Type 2
