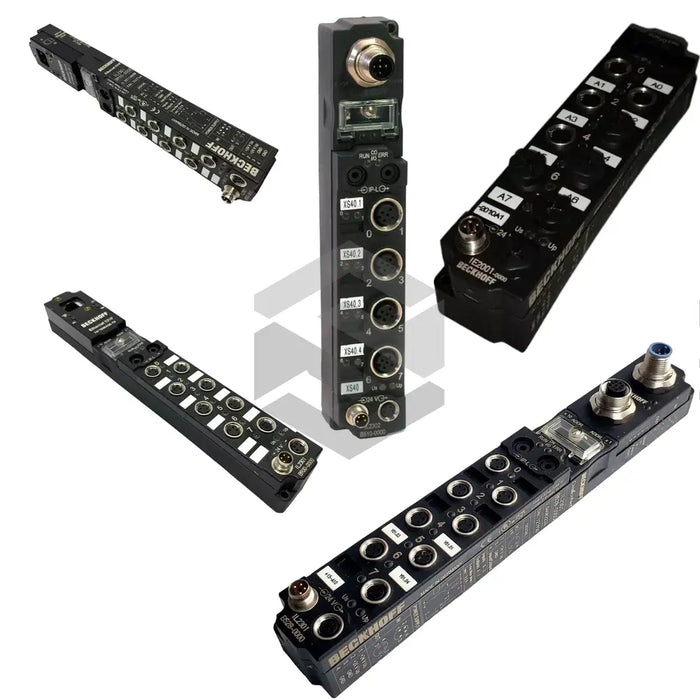

The Beckhoff IL2301-B400-0000 is a durable module in the IL Coupler Box Units series, providing 4 inputs + 4 outputs each rated at 0.5 A. It operates on 24 V DC from 0 to 55 °C, with IP65/66/67 protection, 3 ms input filtering, short-circuit proof channels and holds CE and UL approvals.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
0 Signal Voltage
-3…+5 V
1 Signal Input Current
6 mA
1 Signal Voltage
11…30 V
Approvals
CE, UL
Auxiliary Power Current
20 mA (typ.)
Channel Short-circuit Proof
Yes
Digital I/O Channels
4 inputs + 4 outputs
Input Filter
3 ms
Load Type
Ohmic, inductive, lamp
Max Output Current per Channel
0.5 A
Operating Temp
0…+55 °C
Power Input Connector
M8 male, 4-pin
Power Output Connector
M8 female, 4-pin
Protection Rating
IP65/66/67 (EN 60529)
Rated Load Voltage
24 V DC (-15%/+20%)
Short-circuit Current
1.5 A (typ.)
Storage Temp
-25…+85 °C
Vibration/Shock Resistance
EN 60068-2-6/2-27
