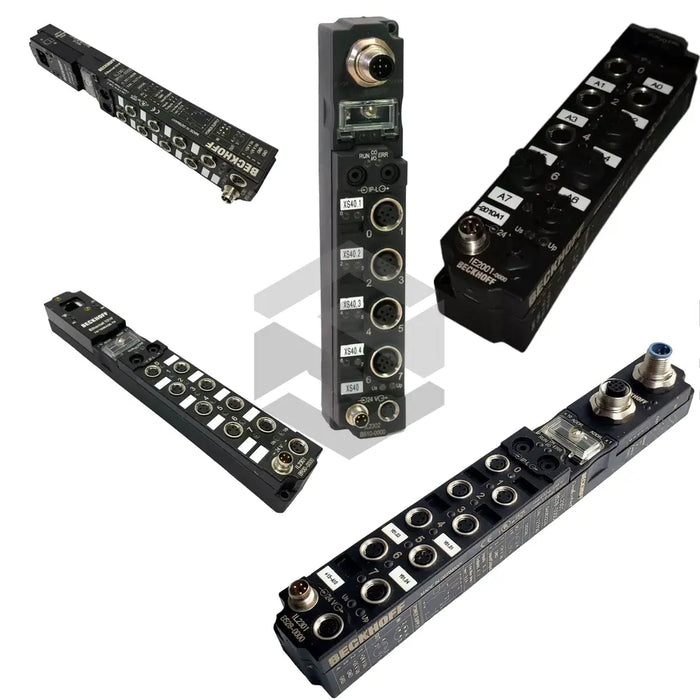

S image of IL2301-B900-0000

IL2301-B900-0000

by Beckhoff
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The IL2301-B900-0000 from Beckhoff offers 4 inputs and 4 outputs and a data transfer rate of 10/100 Mbit/s. Part of the IL Coupler Box Units, this coupler box module supports TwinCAT ADS and Modbus TCP protocols and carries a protection rating of IP65/66/67.

It operates on a 24 V DC control voltage with −15/+20 % tolerance and features a short-circuit-proof sensor supply of up to 0.5 A, handling up to 127 analog and 964 digital I/Os. The module accepts a 30 mA box supply current and functions between 0 and 55 °C.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

“0” Signal Voltage

-3…+5 V

“1” Signal Voltage

11…30 V, 6 mA input current (EN 61131-2, type 2)

Approvals

CE, UL

Bus Interface

1 x RJ45 socket

Data Transfer Rates

10/100 Mbit/s, automatic recognition

Input Filter

3.0 ms

Max. Output Current

0.5 A per channel, short-circuit proof

Number Of Channels

4 inputs + 4 outputs

Operating Temperature

0…55°C

Power Supply

24 V DC (-15%/+20%)

Protection Rating

IP65/66/67 (conforms to EN 60529)

Protocol

TwinCAT ADS, Modbus TCP, Beckhoff real-time Ethernet

Rated Load Voltage

24 V DC (-15%/+20%)

Sensor Supply

max. 0.5 A, short-circuit proof

Specification

EN 61131-2, type 2
