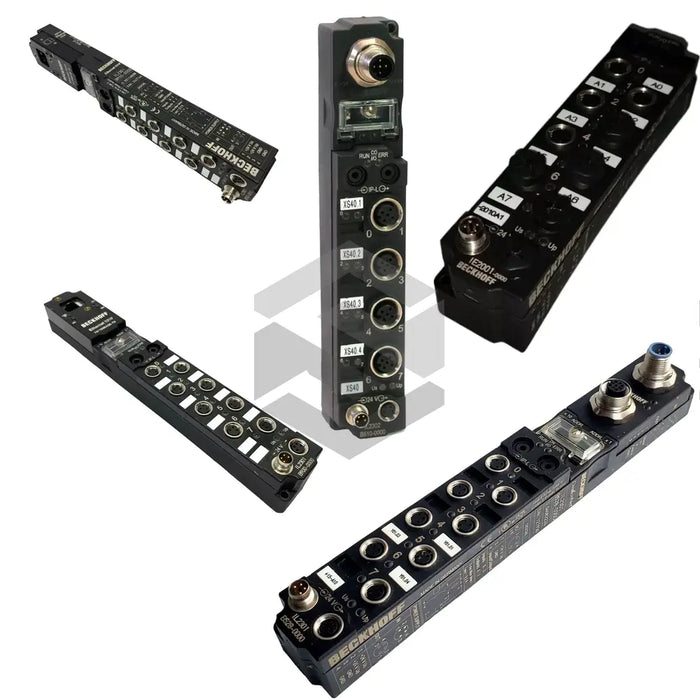

S image of IL2302-B520

IL2302-B520

by Beckhoff
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The Beckhoff IL2302-B520 unit from the IL Coupler Box Units series by Beckhoff features 4 digital inputs and 4 digital outputs with individual short-circuit protection rated at 1.5 A typ. per channel and an output current capacity of 0.5 A each. With an input filter response time of 3.0 ms typ., DeviceNet and IP-Link communication, and IP65, IP66, IP67 protection ratings, this 30 mm wide coupler offers reliable operation from 0 to +55 °C. It supports 24 V DC supply via an M8 connector and M12 signal connections, housed in durable plastic meeting EN 61000-6-2 and EN 61000-6-4 EMC standards.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Communication

DeviceNet, IP‑Link

Digital filter response time

3.0 ms typ.

Digital inputs

4 channels

Digital outputs

4 channels

EMC standards

EN 61000‑6‑2, EN 61000‑6‑4

Housing material

Plastic

Housing width

30 mm

Operating temperature

0 to +55°C

Output current per channel

0.5 A

Power supply connection

M8

Protection rating

IP65, IP66, IP67

Shock standard

EN 60068‑2‑27

Short‑circuit current

1.5 A typ.

Short‑circuit protection

Individual per channel

Signal connection

M12

Storage temperature

-25 to +85°C

Supply voltage

24 V DC (-15%/+20%)

Vibration standard

EN 60068‑2‑6

Wiring types

2‑wire, 3‑wire
