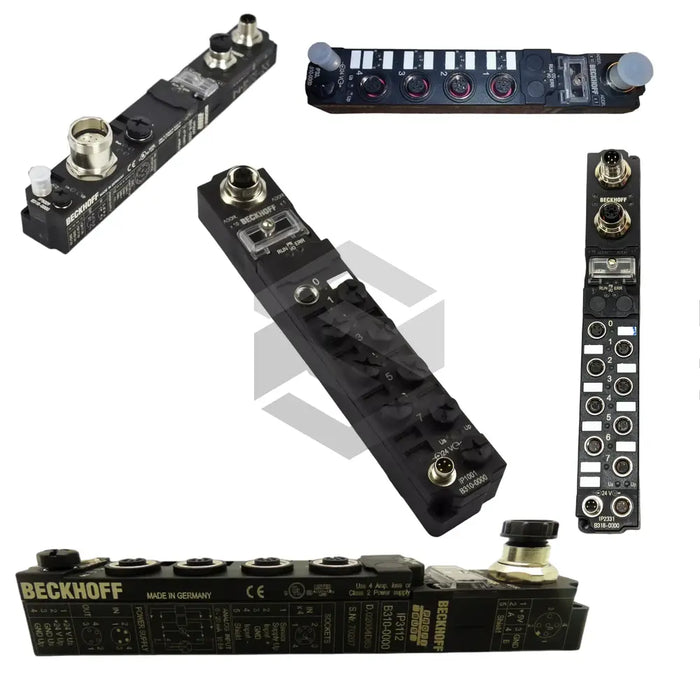

The IP1000-B528 is an I/O module by Beckhoff from the IP Compact Box Units series. It features 8 inputs with a nominal input voltage of 24 V DC (±15%/20%) and a typical input current of 6 mA. An input filter time of 3.0 ms ensures signal integrity. The module offers IP65/66/67 protection and uses M8 feed and downstream connections. It supplies up to 0.5 A sensor power, operates from 0 to 55 °C and is CE and UL approved.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Approvals
CE, UL
EMC Immunity/Emission
EN 61000-6-2/61000-6-4
High Signal Voltage ("1" level)
11…30 V (EN 61131-2 type 2)
Input Connection
8 mm snap-in
Input Current
typ. 6 mA (EN 61131-2 type 2)
Input Filter Time
3.0 ms
Low Signal Voltage ("0" level)
-3…+5 V (EN 61131-2 type 2)
Nominal Input Voltage
24 V DC (–15%/+20%)
Number of Inputs
8
Operating Temperature
0…+55 °C
Power Supply Connection (downstream)
1× M8 female, 4-pin
Power Supply Connection (feed)
1× M8 male, 4-pin
Process Image Bit Width
8 inputs
Protection Rating
IP65/66/67 (EN 60529)
Sensor Supply
from control voltage, max. 0.5 A, short-circuit proof
Storage Temperature
–25…+85 °C
Vibration/Shock Resistance
EN 60068-2-6/2-27
