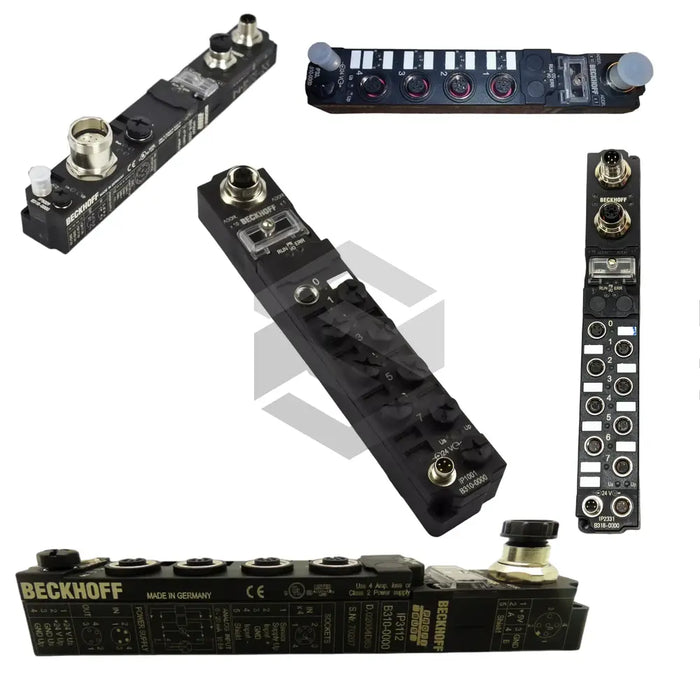

The IP1001-B318 by Beckhoff is part of the IP Compact Box Units series, offering auto-detect data rates up to 12 Mbaud and a bus interface via 1×M12 socket + plug, 5-pin, B-coded. Configuration via KS2000 or controller supports DP-V1. With a control voltage of 24 V DC (−15%/+20%) and protection rating of IP65/66/67, it ensures reliable performance in harsh environments.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Approvals/Markings
CE, UL
Box supply current
85 mA
Bus interface
1×M12 socket + plug, 5-pin, B-coded
Configuration
via KS2000 or controller; supports DP‑V1
Control voltage
24 V DC (−15%/+20%)
Data medium
shielded copper cable, 2×0.25 mm²
Data rate
auto-detect up to 12 Mbaud
Data transfer time (10 stations, 32‑bit I/O)
≈0.5 ms
Dimensions (W×H×D)
30×210×26.5 mm
Downstream connector
1×M8 4‑pin female, A‑coded
EMC immunity/emission
EN 61000‑6‑2/6‑4
Installation position
variable
Load voltage
per I/O type
Max. sensor current
0.5 A
Operating temperature
0…+55 °C
Power feed connector
1×M8 4‑pin male, A‑coded
Protection rating
IP65/66/67 (EN 60529)
Storage temperature
-25…+85 °C
Vibration/shock resistance
EN 60068‑2‑6/2‑27
