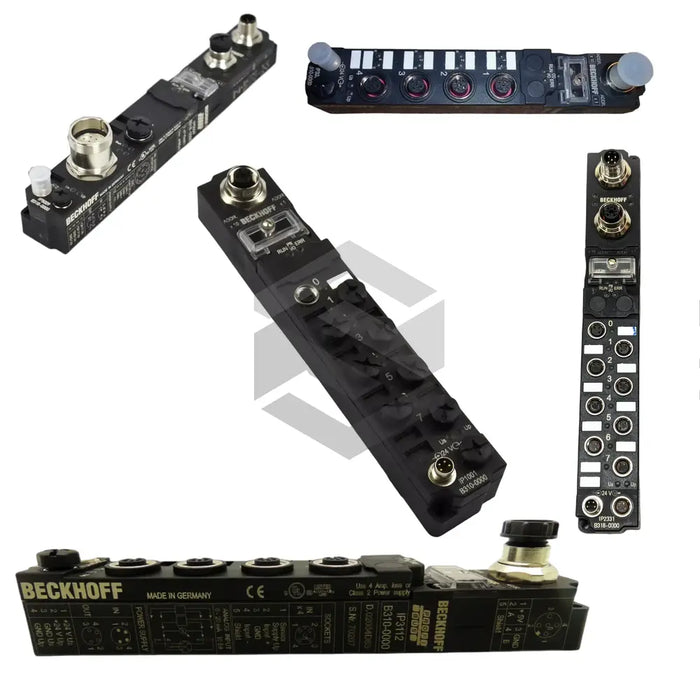

The IP2001-B318 is a Fieldbus Box from Beckhoff in the IP Compact Box Units series, offering 8-channel digital output with a PROFIBUS interface and a data rate up to 12 Mbaud (auto detect). It operates on 24 V DC (–15%/+20%) and delivers max. 0.5 A per channel. Housed in PA6 with a protection rating of IP65/IP66/IP67, it supports ohmic, inductive, and lamp loads and withstands 0…+55 °C operational temperature.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Bus Interface
PROFIBUS
Configuration
via KS2000 or controller
Data Rate
up to 12 Mbaud (auto detect)
Data Transfer Medium
Shielded copper cable, 2×0.25 mm²
Dimensions (W×H×D)
30×210×26.5 mm
Downstream Connection
M8 female, 4-pin, A-coded
DP-V1 Extensions
supported
Load Type
ohmic, inductive, lamp
Material
PA6 (polyamide)
Nominal Output Voltage
24 V DC (-15%/+20%)
Operating Temperature
0…+55 °C
Output Connections
M8, screw type
Output Current
max 0.5 A/channel
Power Feed Connection
M8 male, 4-pin, A-coded
Protection Rating
IP65/66/67
Storage Temperature
-25…+85 °C
Supply Voltage
24 V DC (-15%/+20%)
Type
Fieldbus Box, 8-channel digital output
