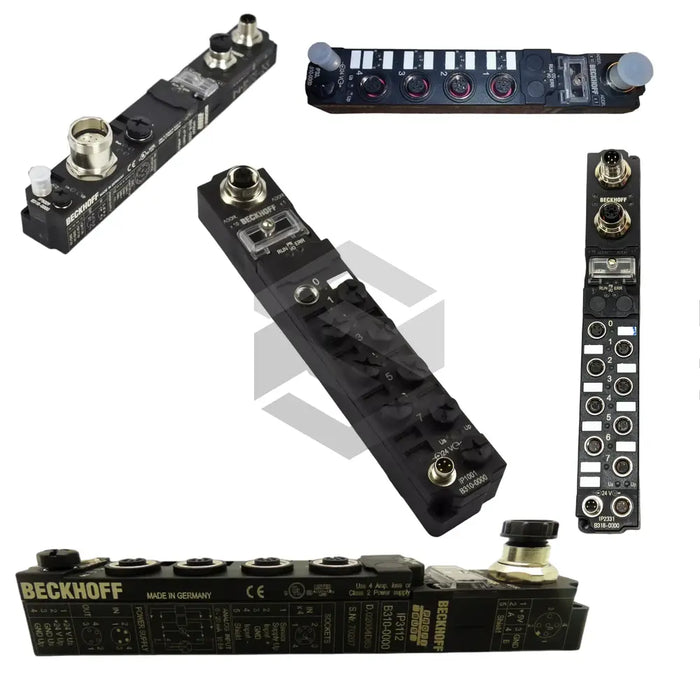

The IP2001-B318-0000 is a compact box unit from Beckhoffs IP Compact Box Units series, featuring 8 outputs with M8 screw-type connections and a nominal output voltage of 24 V DC (-15%/+20%). Each channel delivers up to 0.5 A short-circuit proof. Measuring 30x210x26.5 mm, it supports automatic data rates up to 12 Mbaud and an IP65/66/67 rating, ensuring robust industrial automation performance.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Data Transfer Rate
Automatic detection up to 12 Mbaud
Dimensions
30 mm x 210 mm x 26.5 mm
Emc Compliance
Conforms to EN 61000-6-2/EN 61000-6-4
Fieldbus Interface
1 x M12 socket, 5-pin, B-coded; 1 x M12 plug, 5-pin
Load Type
Ohmic, inductive, lamp load
Material
PA6 (Polyamide)
Maximum Output Current
0.5 A per channel, individually short-circuit proof
Nominal Output Voltage
24 V DC (-15%/+20%)
Number Of Outputs
8
Operating Temperature
0…55°C
Output Connections
M8, screw type
Protection Rating
IP65/66/67 (according to EN 60529)
Short-circuit Current
Typical 1.5 A
Storage Temperature
-25…+85°C
