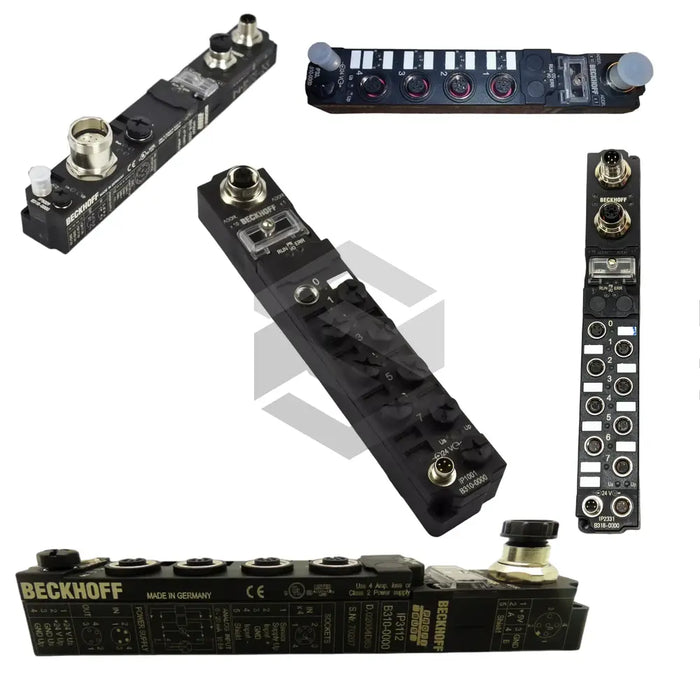

IP2301-B318

Name: IP2301-B318
Brand: Beckhoff
Price: 933.21 USD
Availability: InStock

by Beckhoff

$933.21 - $933.21

$933.21

$933.21 - $933.21

$933.21

In Stock, Ships Fast

The IP2301-B318 is a module from Beckhoff's IP Compact Box Units. It offers 4 inputs + 4 outputs with M8 screw-type connectors and achieves data transfer rates of automatic detection up to 12 Mbaud. Configuration is possible via KS2000 or controller. An input filter of 3.0 ms ensures stable signal processing and each output is short-circuit proof with a max output current of 0.5 A per channel. Rated for 24 V DC, operating from 0…+55°C, and boasting an IP65/66/67 protection rating, it suits harsh industrial environments.

Contact Us

Email: sales@servosupplier.com

Phone Number: 1-888-551-3082

International: 1-919-443-0207

Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Bus Interface Plug

1 x M12, 5-pin, B-coded, tee connector integrated

Bus Interface Socket

1 x M12, 5-pin, B-coded

Configuration Possibility

via KS2000 or controller, supports DP‑V1 extensions

Data Transfer Medium

shielded copper cable, 2 x 0.25 mm²

Data Transfer Rate

automatic detection up to 12 Mbaud

I/O Connections

M8, screw type

Input Filter

3.0 ms

Load Type

ohmic, inductive & lamp loads

Max Output Current

0.5 A per channel, short‑circuit proof

Number of Channels

4 inputs + 4 outputs

Operating Temp Range

0…+55 °C

Protection Rating

IP65/66/67 (EN 60529)

Rated Load Voltage

24 V DC (–15%/+20%)

Sensor Supply

from control voltage, max 0.5 A, short‑circuit proof

Signal Voltage High

11…30 V, 6 mA input current (EN 61131‑2 type 2)

Signal Voltage Low

–3…+5 V
