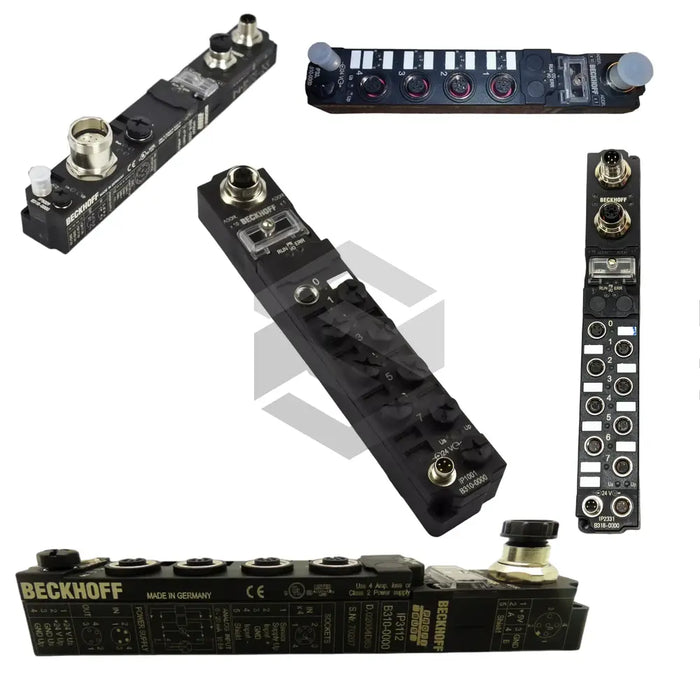

S image of IP2301-B520

IP2301-B520

by Beckhoff
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The IP2301-B520 module from Beckhoff is part of the IP Compact Box Units series. This N-Channel MOSFET device supports a continuous drain current of 6A, a pulsed drain current of 20A and dissipates 1.25W of power. It operates across a wide temperature range of -55°C to 150°C, withstands ESD surges up to 2000V (Human Body Model), and has a gate threshold voltage between 1.0V and 3.0V. It also features a 540pF input capacitance.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Continuous Drain Current (id)

6A

Device Type

N-Channel MOSFET

Drain-source On-resistance (rds(on))

≤33mΩ @ Vgs=4.5V, ≤42mΩ @ Vgs=2.5V, ≤65mΩ @ Vgs=1.8V

Drain-source Voltage (vds)

20V

Esd Protection

2000V (Human Body Model)

Gate Threshold Voltage (vgs(th))

1.0V to 3.0V

Gate-source Voltage (vgs)

±8V

Input Capacitance (ciss)

540pF

Maximum Junction Temperature (tj)

150°C

Module Type

Compact Box

Operating Temperature Range

-55°C to 150°C

Output Capacitance (coss)

160pF

Power Dissipation (pd)

1.25W

Pulsed Drain Current (id, Pulse)

20A

Reverse Transfer Capacitance (crss)

95pF
