IP2331-B318

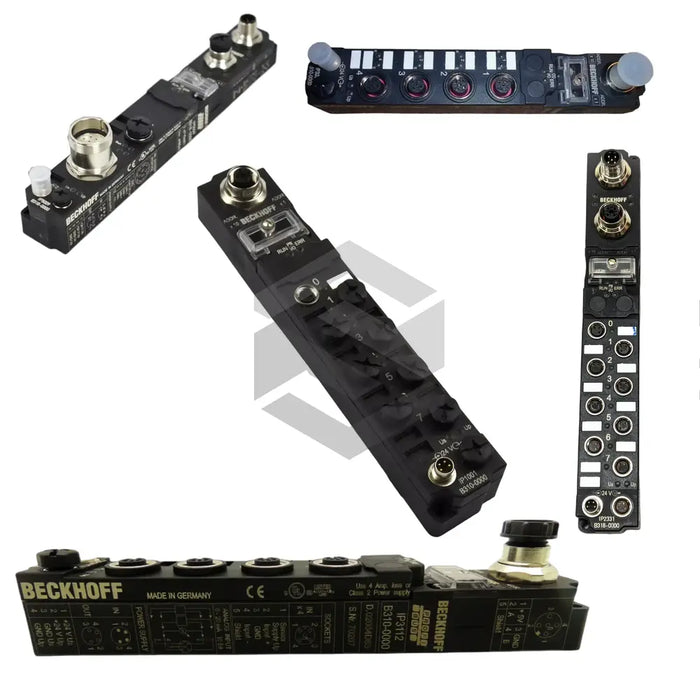

The Beckhoff IP2331-B318 is a rugged fieldbus box within the IP Compact Box Units series, engineered to deliver reliable digital I/O in demanding industrial environments. This unit integrates a 4 inputs, 4 outputs configuration with an integrated T-connector to simplify network topology and wiring changes without additional accessories. Its support for the PROFIBUS communication protocol ensures seamless integration with a broad range of PLCs and field devices, enhancing data throughput and system diagnostics. With a protection rating of IP65, IP66, IP67, the IP2331-B318 withstands dust ingress, high-pressure washdowns, and temporary water immersion, making it suitable for both indoor and outdoor installations. Built to endure temperatures from 0 to +55°C, this compact module ensures consistent performance across varying process conditions.

Detailed technical specifications define the IP2331-B318's capabilities for precise control and diagnostics. Power is supplied via a 24 V DC (-15%/+20%) rail, connected through an M12 5-pin, M8 4-pin port, while its current consumption of 85 mA (excl. sensor), max. 0.5 A minimizes bus loading. The device features an I/O connection type: M8 screw interface and a slim housing width of 30 mm to conserve cabinet space. Signal integrity is maintained with an input filter time of 0.2 ms, and each channel supports up to 2 A per channel, 4 A total output current. Constructed from PA6 (polyamide) material, the housing offers chemical resistance and mechanical stability. Compliance is confirmed by UL approvals and EN 61131-2 Type 2 calibration certification, ensuring safety and measurement accuracy in industrial applications.

Operational features of the IP2331-B318 emphasize robustness and ease of use. The integrated T-connector enables daisy-chain wiring, reducing installation time and error rates. PROFIBUS diagnostics provide real-time status indicators for each input and output channel, facilitating predictive maintenance and rapid fault isolation. The module's protection rating across IP65, IP66, IP67 classifications guarantees dust-tight operation and resistance to spray water and temporary submersion, supporting use in washdown processes and outdoor assemblies. Its nominal operating temperature of 0 to +55°C ensures reliable signal processing even under thermal stress.

System integration is streamlined through full compatibility with Beckhoff controllers and fieldbus infrastructure, allowing plug-and-play expansion within control cabinets or decentralized stations. The IP2331-B318's standardized communication interface and rugged design make it well suited for applications in factory automation, process control, packaging machinery, and outdoor monitoring systems. Engineers benefit from consistent configuration parameters across the IP Compact Box Units series, reducing engineering effort and accelerating project timelines. This multifunctional fieldbus box is an ideal component for high-availability installations where reliability, compactness, and ease of integration are critical.
