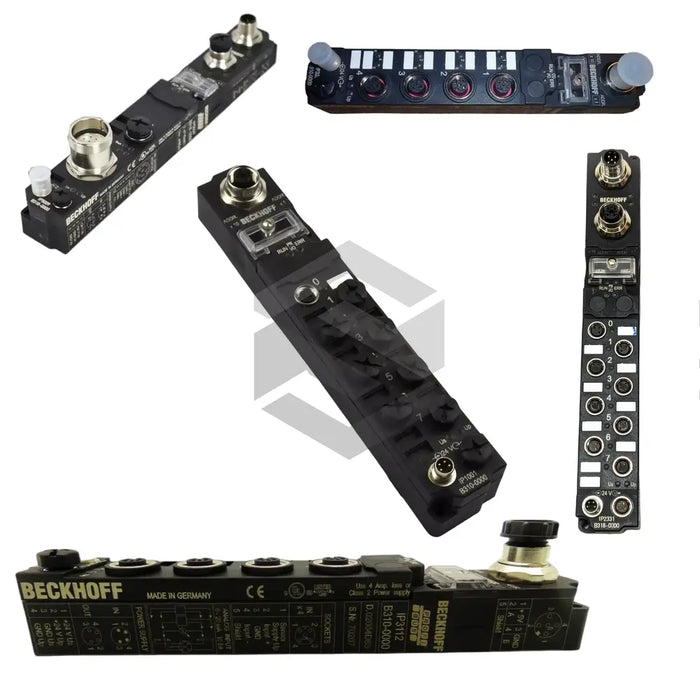

IP3102-B510-0000
by Beckhoff
The IP3102-B510-0000 by Beckhoff is a robust Fieldbus Box module in the IP Compact Box Units series designed for industrial automation applications. This module provides four differential analog input channels with selectable signal ranges of ±10 V as standard or 0 to 10 V optionally. It operates reliably on a 24 V DC ±20% supply and communicates via the CANopen protocol with automatic data-rate detection from 10 kbaud up to 1 Mbaud. Housed in rugged PA6 polyamide material, the unit achieves protection ratings of IP65, IP66, and IP67, ensuring resilience in harsh environments. The compact design includes four M12 4-pin screw-type connectors for analog signals and M8 A-coded sockets for power, simplifying installation and cabling.
Technical capabilities of the IP3102-B510-0000 ensure precise and stable data acquisition. With a resolution of 16-bit in the ±10 V range (or 15-bit in 0–10 V), it maintains measurement accuracy within ±0.3% of full-scale. The input impedance exceeds 100 kΩ, while the maximum common-mode voltage is 35 V, safeguarding signal integrity. Standard sampling time of 250 ms can be reduced to 5 ms for faster capture, and ten selectable analog filters—including averaging—optimize noise suppression. Up to 30 V DC is available from the UP load voltage for powered sensors, and the unit draws a base Current Consumption ≤10 mA (with total load capacity up to 0.5 A).
Operational features focus on reliability and protection. The module offers 500 V isolation between control voltage and analog channels, and an additional 500 V between the fieldbus connection and control voltage, ensuring safe separation of power domains. It supports Short Circuit Protection and Polarity Reversal Protection to guard against wiring faults. The rugged housing and connectors meet EN 60068-2-6 vibration and EN 60068-2-27 shock standards and operate over an ambient temperature range of 0°C to +55°C. Mounting is straightforward with standard DIN-rail clip or panel configurations, while the low profile minimizes space requirements in industrial cabinets.
Integration into existing systems is seamless. The IP3102-B510-0000 Fieldbus Box interfaces directly with Beckhoff’s TwinCAT and other CANopen controllers, enabling automatic mapping of four 16-bit input values and optional 4×8-bit control or status signals. Its standardized M8 Connector and M12 signal ports simplify wiring in distributed installations. Ideal for process monitoring, machine tool feedback, or packaging equipment, this compact module brings high-resolution analog inputs, robust protection, and flexible configuration to modern automation networks.
