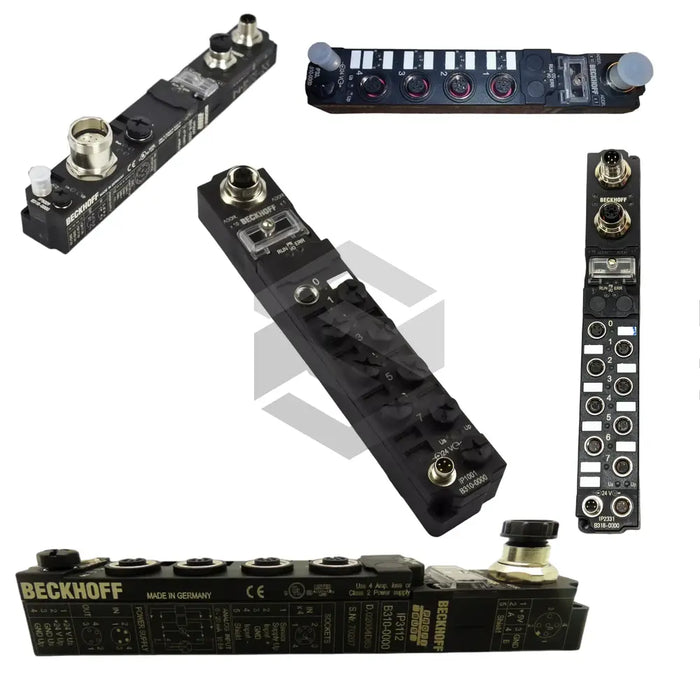

IP3112-B310-0000
by Beckhoff
The Beckhoff IP3112-B310-0000 input module is a high-precision data acquisition device from the IP Compact Box Units series by Beckhoff. Featuring a 16-bit resolution, four M12 screw-type input connections, and a nominal voltage of 24 V DC, this module is engineered to deliver accurate analog measurements in industrial automation applications. Its primary function is to reliably convert low-level sensor signals to digital data for process monitoring and closed-loop control systems.
With a default conversion time of 250 ms and a minimum conversion time configurable down to 5 ms, the IP3112-B310-0000 supports rapid sampling rates for dynamic process control. The module’s bus interface comprises a 1× M12 socket, 5-pin B-coded connection, and it offers auto-detect data transfer rates up to 12 Mbaud to ensure seamless integration into high-speed EtherCAT networks. Measurement uncertainty is held to <±0.3% of full scale via an internal shunt resistance of 80 Ω, while the output current range of 0/4–20 mA provides compatibility with standard analog actuators.
Designed for robust industrial environments, the module uses M8 female and male sockets (4-pin A-coded) for power supply connections and draws sensor power directly from the load supply voltage (U_P). Its compact dimensions of 30 × 175 × 26.5 mm allow for space-efficient installation in control cabinets and machinery. Automatic data rate detection minimizes commissioning effort, and the high resolution ensures precise control feedback. Overall, the IP3112-B310-0000 delivers fast, accurate, and reliable signal conversion, making it an ideal choice for demanding industrial automation and measurement tasks.
