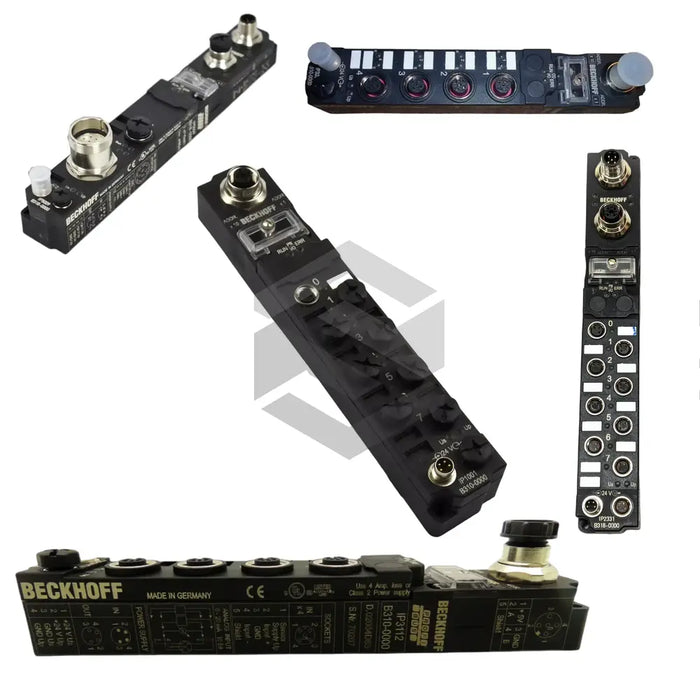

The IP5009-B318 is an industrial I/O module by Beckhoff from the IP Compact Box Units series, featuring a protection rating of IP65/66/67 for harsh environments. It operates on 24 V DC control voltage and supports auto-detect data rates up to 12 Mbaud over shielded copper cable. Compliant with EN 61000-6-2/6-4 EMC standards, it measures 30×210×26.5 mm and draws 85 mA + sensor current.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Approvals
CE, UL
Box supply current
85 mA + sensor current, max. 0.5 A
Bus interface
1x M12 socket 5-pin; 1x M12 plug 5-pin; B-coded
Configuration
via KS2000 or controller; DP-V1 supported
Control voltage
24 V DC (-15%/+20%)
Data transfer medium
shielded copper cable, 2x0.25 mm²
Data transfer rate
auto detection up to 12 Mbaud
Dimensions
30 x 210 x 26.5 mm
EMC immunity/emission
EN 61000-6-2 / EN 61000-6-4
Installation
2 fixing holes Ø3.5 mm for M3 screws
Load voltage
per I/O type
Material
PA6 (polyamide)
Operating temperature
0…+55°C
Power connection downstream
1x M8 female socket, 4-pin, A-coded
Power connection feed
1x M8 male socket, 4-pin, A-coded
Protection rating
IP65 / IP66 / IP67
Storage temperature
-25…+85°C
Vibration/shock resistance
EN 60068-2-6 / EN 60068-2-27
