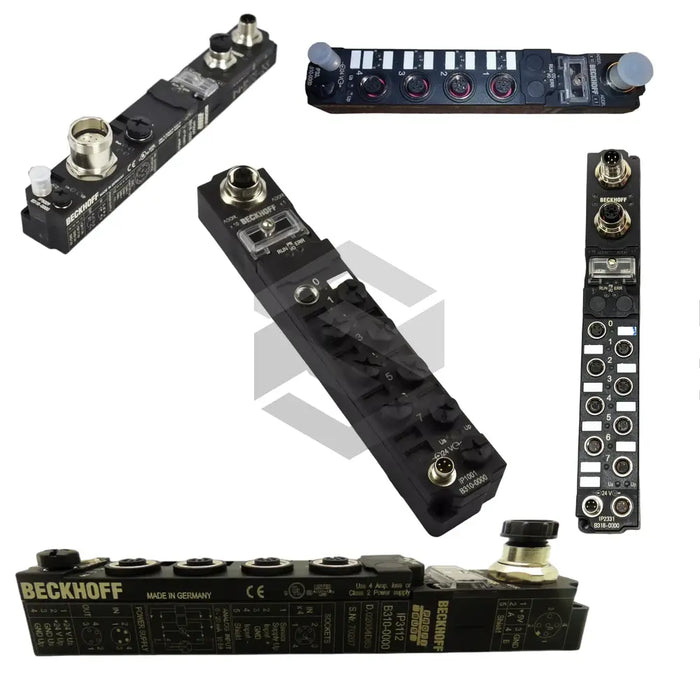

S image of IP5209-B310-0000

IP5209-B310-0000

by Beckhoff
$450.00 - $495.00
$450.00
$450.00 - $495.00
$450.00

In Stock, Ships 1 - 3 Days

The Beckhoff IP5209-B310-0000 from the IP Compact Box Units series is an IP-rated position controller power supply designed for industrial automation. It features a protection rating of IP65/66/67 and operates on a 24 V DC (-15%/+20%) control voltage. The device supports data transfer rates of up to 12 Mbaud with auto-detection and a transfer time of ~0.5 ms for 10 stations, while drawing a box supply current of 85 mA + sensor current, max. 0.5 A. Connectivity is provided via a 5-pin, B-coded M12 bus interface and 4-pin, A-coded M8 male and female sockets for feed and downstream supply, respectively. It operates from 0…+55 °C and complies with EN 61000-6-2/6-4, ensuring reliable distributed I/O integration.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Approvals

CE, UL

Box Supply Current

85 mA + sensor current, max. 0.5 A

Bus Interface

1 x M12 socket, 5-pin, B-coded

Configuration

KS2000/controller; supports DP-V1 extensions

Control Voltage

24 V DC (-15%/+20%)

Data Transfer Medium

shielded copper cable, 2 x 0.25 mm²

Data Transfer Rate

up to 12 Mbaud, auto-detected

Data Transfer Time

~0.5 ms for 10 stations (32-bit I/O)

EMC Immunity/Emission

EN 61000-6-2, EN 61000-6-4

Operating Temperature

0…+55°C

Power Supply Downstream

1 x M8 female socket, 4-pin, A-coded

Power Supply Feed

1 x M8 male socket, 4-pin, A-coded

Protection Rating

IP65/66/67 (EN 60529)

Shock Resistance

EN 60068-2-27

Storage Temperature

-25…+85°C

Vibration Resistance

EN 60068-2-6
