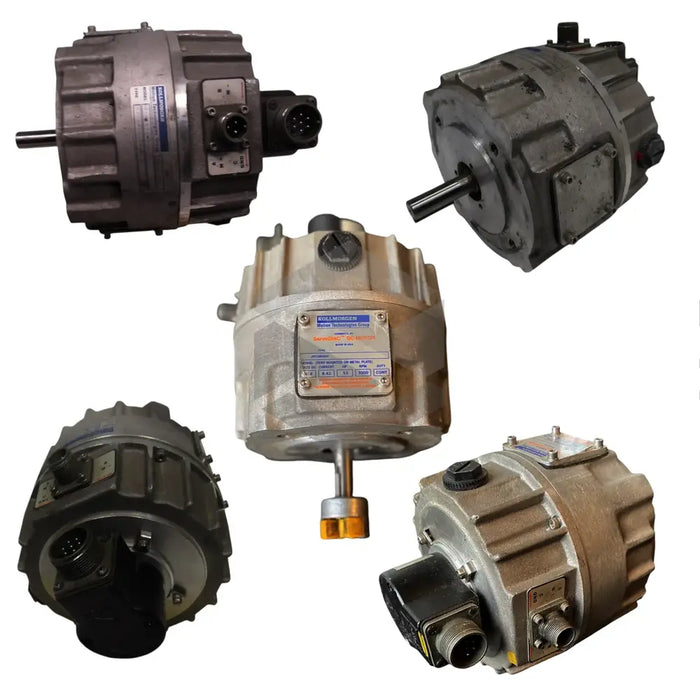

JR16M4CH-1

Original price $0.00 - Original price $0.00
Original price
Request a Quote
$0.00 - $0.00
Current price Request a Quote

Request a quote

Add a Message
The JR16M4CH-1 from Kollmorgen is part of the ServoDisc Pancake DC Motors series. It offers a holding torque of 70.8 in-lb, a peak current of 350 Amps, a torque constant of 9.47 oz-in/Amp, and operates at a DC voltage of 24 Volts. It features a back EMF constant of 7.00 V/KRPM, an engagement time of 30 milliseconds, and a rated continuous current of 46.6 Amps. The motor weighs 2.5 lbs and measures 5.50 inches in diameter.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Additional Inertia


0.0064 oz-in-sec²

Back Emf Constant


7.00 V/KRPM

Dc Voltage


24 Volts

Diameter


5.50 inches

Disengagement Time


70 milliseconds

Engagement Time


30 milliseconds

Holding Torque


70.8 in-lb

Input Power


25 Watts Max

Moment Of Inertia


0.084 oz-in-sec²

Peak Current


350 Amps

Rated Continuous Current


46.6 Amps

Rated Terminal Voltage


23.0 Volts

Terminal Resistance


0.050 Ohms

Torque Constant


9.47 oz-in/Amp

Weight


2.5 lbs
