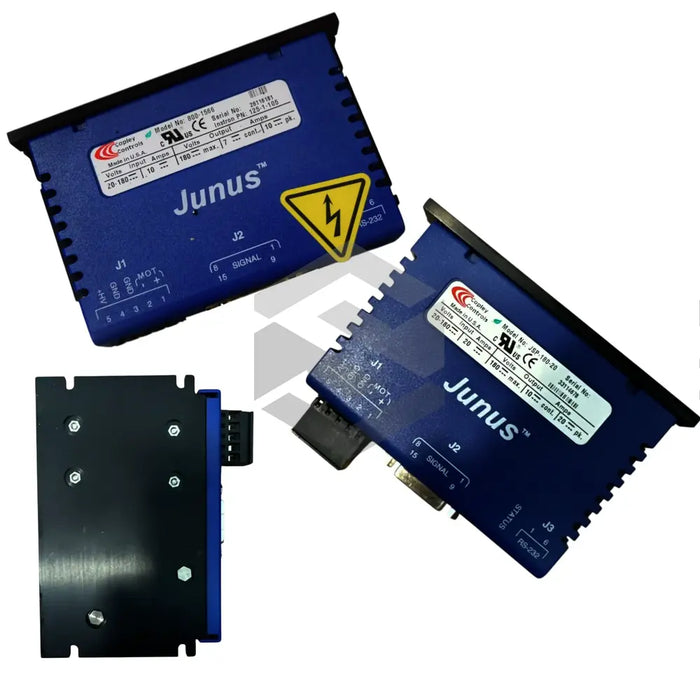

The JSP-090-10 from Copley Controls features a compact 130 x 82 x 31 mm housing and includes RS232 communications. As part of the Junus Motor Controllers, this servo amplifier operates with an input voltage range of +20 to +90 V DC and provides a peak current of 10 Adc.
With a continuous current of 5 Adc and back-EMF feedback in velocity mode, it delivers precise control. The unit weighs just 0.66 lb and achieves a continuous output power of 0.43 kW.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Ambient Temperature Operating Range
0 to +45 °C
Command Interface
±10V velocity/torque command, PWM velocity/torque command
Communications
RS232
Continuous Current
5 Adc
Continuous Output Power
0.43 kW
Control Modes
Velocity, Torque
Current Loop Bandwidth
3 kHz typical
Dimensions
130 x 82 x 31 mm [5.1 x 3.2 x 1.2 in]
Feedback
Back-EMF (velocity mode)
Input Voltage Range
+20 Vdc to +90 Vdc
Peak Current
10 Adc
Peak Output Power
0.85 kW
Pwm Outputs
MOSFET H-bridge, 20 kHz center-weighted PWM carrier
Weight
0.66 lb (0.30 kg)
