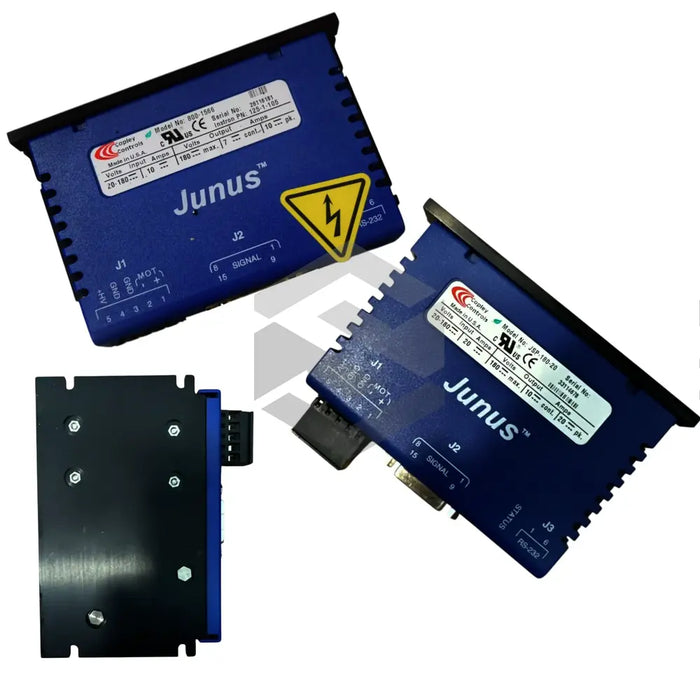

The JSP-180-10 from Copley Controls is a compact servo amplifier measuring 5.10 in by 3.22 in and weighing 0.66 lbs. Part of the Junus Motor Controllers series, it supports a voltage range of +20 to +180 Vdc and delivers a peak current of 10 Adc.
It features a 20 kHz current loop sampling rate, a 4 kHz velocity loop update, and 40 kHz pulse width modulation for minimized motor ripple. It also offers RS232 digital communication for setup and control.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Continuous Current
5 Adc
Current Loop Update Rate
20 kHz (50 µs)
Digital Communications
RS232
Feedback
Back-EMF (velocity mode)
Hvmin To Hvmax
+20 to +180 Vdc
Mechanical Cooling
Heat sink and/or forced air cooling
Operating Temperature Range
0 to +45 °C
Peak Current
10 Adc
Pwm Frequency Range
1 kHz minimum, 100 kHz maximum
Size
5.10 in (129,5 mm) X 3.22 in (81,79 mm) X 1.17 in (29,72 mm)
Velocity Loop Update Rate
4 kHz (250 µs)
Weight
0.66 lb (0.30 kg)
