K32HSFL-LNK-NS-02

Original price $3,000.00 - Original price $3,000.00
Original price
$3,000.00
$3,000.00 - $3,000.00
Current price $3,000.00
In Stock, Ships 3 - 5 Days
Request a quote

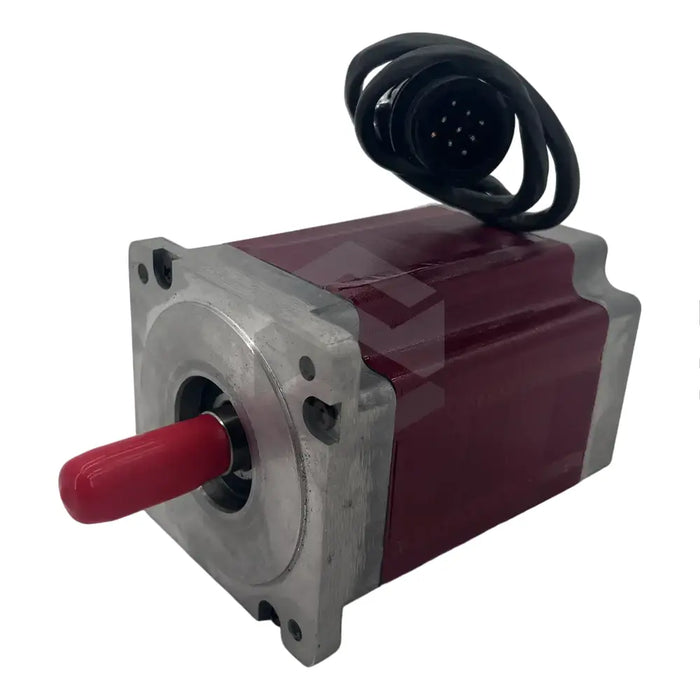

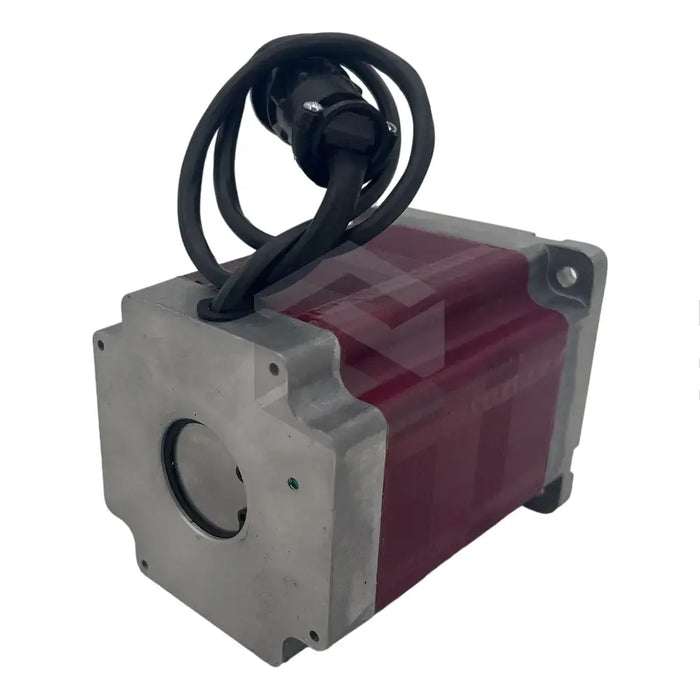

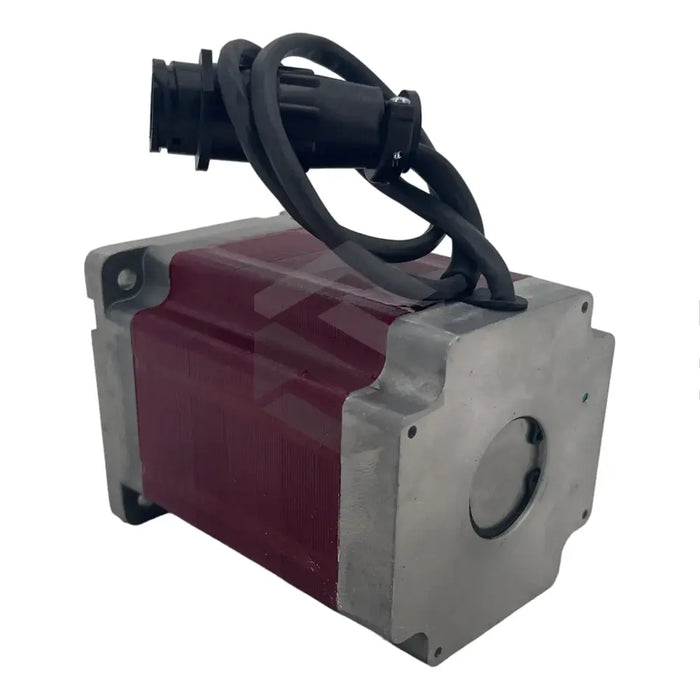

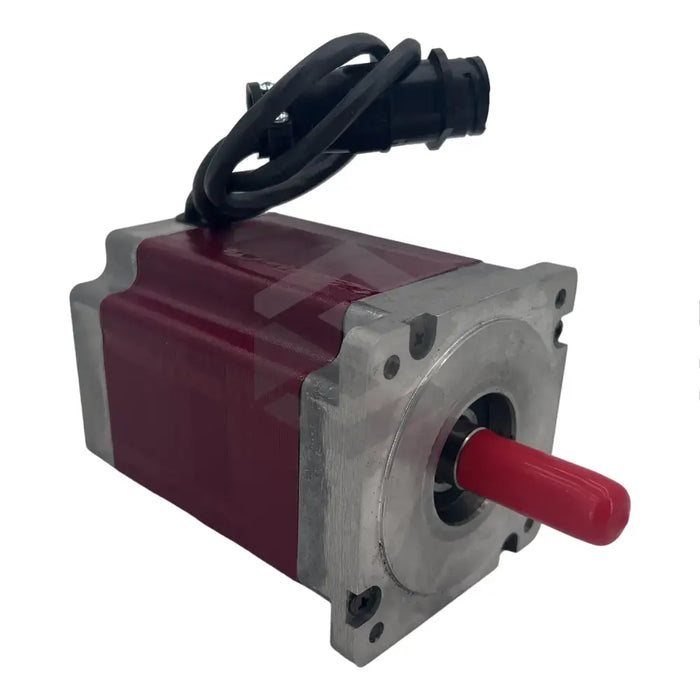

Pacific Scientific presents the K32HSFL-LNK-NS-02, a remarkable hybrid stepper motor, renowned for its impressive torque-to-frame size ratio. This product is part of the distinguished Sigmax Type Powerpac K series, notorious for its superior high torque performance. The motor's unique stator design and optimized magnetics facilitate extraordinary speed and torque output, while its low detent torque ensures smooth micro stepping. The stepper motor also boasts an additional set of magnets within the stator slots, enhancing the rotation force. Presented in rugged NEMA 34 and 42 sizes, the stepper combines a large diameter rotor with a rotor-stator, promoting faster rotation. Pacific Scientific has enhanced the K32HSFL-LNK-NS-02 with state-of-the-art, flux-focusing SIGMAX technology, resulting in a 25% increase in turning force. Measuring 8.1 A rated current and 0.52 Ohm resistance per winding, the stepper also features a laminated rotor, a single shaft configuration, and a straight key shaft. Weighing a mere 3.8 kg, this item defies its size with sterling efficiency.
30 Day Warranty
Technical Specifications
  • Manufacturer: Pacific Scientific
  • Product Type: Hybrid Stepper
  • Series: Sigmax Type Powerpac K series
  • Special Feature: Low Detent Torque
  • Extra Feature: Extra Set of Magnets in Stator Slots
  • Motor Size: NEMA 34 and 42 Dimensions
  • Housing: Square
  • Motor Size: 90 and 110 mm
  • Connection: 8-pole Flying Lead
  • Technology: Flux-focusing SIGMAX Technology
  • Rotor Stacks: Two Stacks
  • Winding Type: Large
  • Holding Torque per Winding: 10.7 Nm
  • Rated Current per winding: 8.1 A
  • Rated Resistance per Winding: 0.52 Ohm
  • Shaft Configuration: Single
  • Shaft Type: Straight Key
  • Weight: 3.8kg
  • Motor Size: NEMA 34 and 42
  • Shaft: Straight Keyway
  • Step Angle: 1.8°
  • Front Bell: Long-life Steal Bearing Bore
  • Phase: 2-Phase
  • Performance: Magnetic Design Optimized
  • Protection: Class IP 44
  • Rotor Inertia: 0.27 kgm2×10-3
