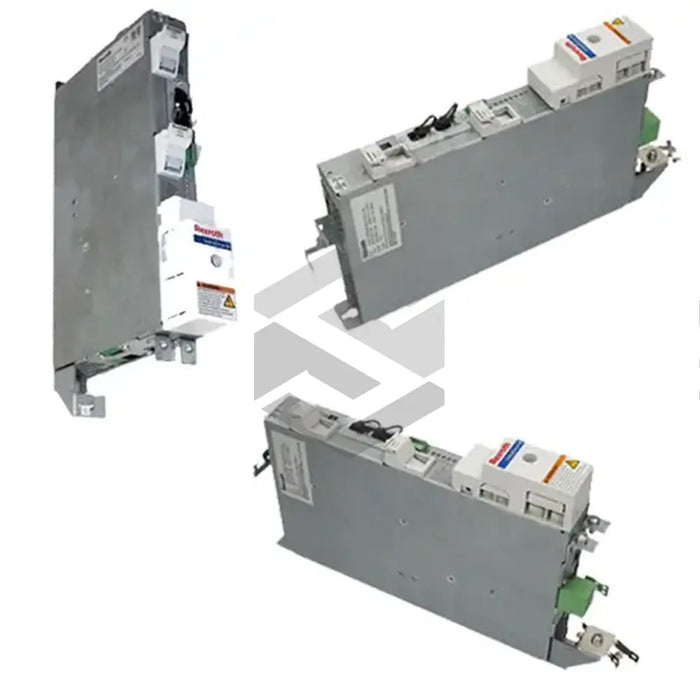

S image of KCU01.1N-SE-SE-NNN-NN-S-NN-NW

KCU01.1N-SE-SE-NNN-NN-S-NN-NW

by Bosch Rexroth Indramat
$2,187.50 - $2,187.50
$2,187.50
$2,187.50 - $2,187.50
$2,187.50

In Stock, Ships 1 - 3 Days

The KCU01.1N-SE-SE-NNN-NN-S-NN-NW is a drive connection box from Bosch Rexroth Indramat, designed to function as part of the IndraDrive Mi control system. It plays a crucial role in facilitating communication between the servo drive and the power supply unit. It's designed for indoor use within a control cabinet, boasting certifications from UL and CSA. The connection box uses a hybrid cable with a 2 x 25 A current-carrying capacity, safeguarded by built-in fuses to prevent damage due to overload. This unit should have clearance distances of 80 mm and 110 mm above and below it, respectively, inside the control cabinet. The device operates optimally when its temperature is between 40 °C and 55 °C. It has an IP 20 protection class. For control voltages, the box receives 24 volts and outputs 42 volts. All these features make it a lightweight, portable and efficient component for any industrial setting.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

KCU01.1N-SE-SE-NNN-NN-S-NN-NW

Certifications

CSA Certified, UL Listed

Functionality

Exchange of status signals between the servo drive and the supply unit

Connection Type

Hybrid cable

Current Capacity

2 x 25 A

Location of Use

Inside a control cabinet only

Positioning

Close to a power supply

Fuse

Present to protect the hybrid cable from overload

Firmware

Not included

Control Panel

Standard

Clearance Distances

80mm above, 110mm below

Part of System

IndraDrive Mi control system

Features

Connectors on its hybrid cable, facilitates communication between the control unit and the distributed servo drive

Storage Use Guidance

Must be used for at least an hour if stored for a long period

Operating Temperature

Between 40 °C and 55 °C (decrease in output observed)

Climatic Category (During Storage)

1K3 as per IEC 721 specifications

Mounting

Cannot be mounted horizontally inside the control cabinet

Protection Class

IP 20

Function

Supplies control voltage to all the drives in a drive line

Weight

Lightweight

Environment for Operation

Industrial only

Input Voltage

24 V

Output Voltage

42 V

Hybrid Cable Jacket Material

Polyurethane

Hybrid Cable Bending Diameter

16.2 +/-0.5 mm
