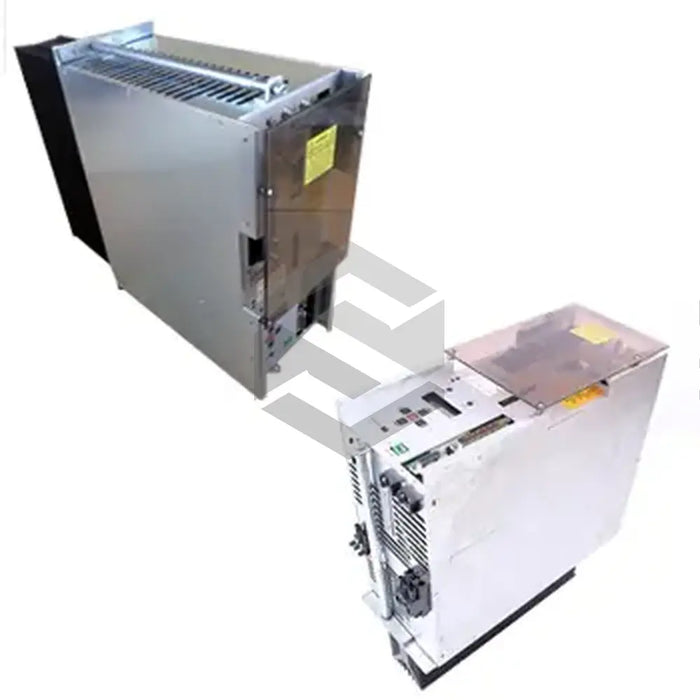

KDA 1.1-100-300-W1-115V

Request a quote
The KDA 1.1-100-300-W1-115V is a main spindle drive from Bosch Rexroth Indramat, intended for use with selected motors and drive controllers from the same manufacturer. Its use is strictly industrial and should not be installed unless the machine meets application standards. Featuring forced cooling and a wide range of positioning features, the device integrates a microcomputer for digital control, diagnostics, and monitoring. It has standardized electrical connections and must only be installed vertically in a control cabinet under specified ambient conditions. The spindle drive can convert DC bus to a rotating three-phase power and has safety measures such as a safety guard and error code display. However, care should be taken as improper use may lead to high electric voltage. For transportation, especially under possible vibration exposure, a shock-absorbing base is advised.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: KDA 1.1-100-300-W1-115V
  • Product Type: Main Spindle Drive
  • Compatibility: Selected Bosch Rexroth Motors and Drive Controllers
  • Cooling Method: Forced
  • Positioning Features: Supported
  • Housing Temperature during Operation: Hot
  • Danger: High Electric Voltage with Improper Use
  • Integrated Components: Microcomputer for Digital Control, Diagnostics, and Monitoring
  • Installation Requirements: Control Cabinet and Compliance with Application Standards
  • Additional Features: Safety Guard
  • Power Conversion: From DC Bus to Rotating Three-Phase Power via Integrated Power Bridge
  • Error display: Displays BS Error Code When Current Limit is Exceeded
  • Heat Dissipation: Outside the Control Cabinet
  • Electrical Connections: Standardized
  • Disconnecting Requirement: Should not be disconnected in the energized state
  • Orientation for Mounting: Vertical
  • Parameters: Stored in the Microcomputer of the Unit
  • Transportation: Requires Shock-Absorbing Base for Prevention Against Vibrations
