KDA 1.1-150-300-W1

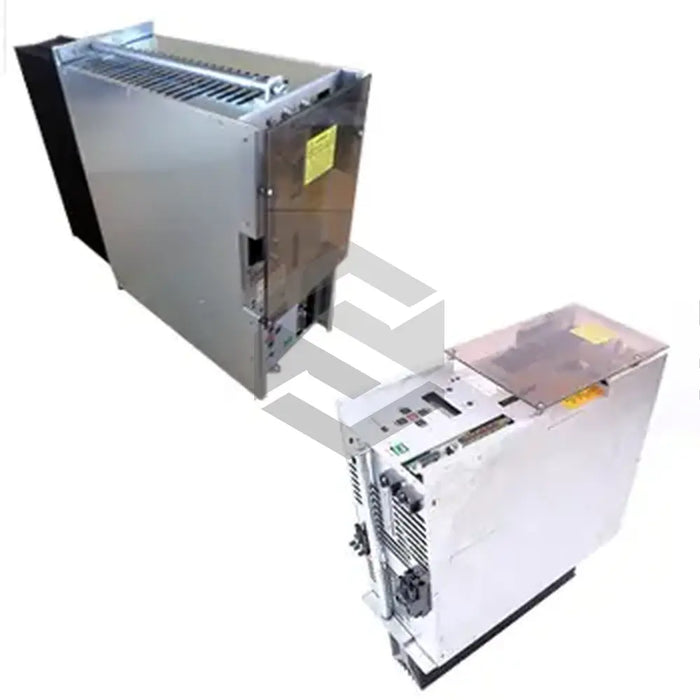

The Bosch Rexroth Indramat KDA 1.1-150-300-W1 is a main spindle drive known for its superior positioning features. Not designed for standalone usage, it requires a specific mechanical accessories kit and blower for installation, and must be integrated into the control cabinet using the supplied long studs. Wiring follows manufacturer-provided circuit diagrams and operation is to be performed solely by qualified personnel. It carries useful diagnostic LEDs on its front panel, requires a properly connected equipment ground conductor before activation, and furnishes accurate rotor positioning information via a motor-mounted encoder. The device uses a 110mm 14-pin ribbon cable for command signal input and follows an IP 10 protection standard. Accompanying the product is an AS programming module, intended for insertion/removal only when the unit is unpowered. Offering environmental friendliness and suitability for C-axis positioning in numerically controlled machine tools, it requires specific nut tightening torque for power connections and cannot be horizontally mounted in the control cabinet. Parameterization is handled by an integrated input and display unit.
