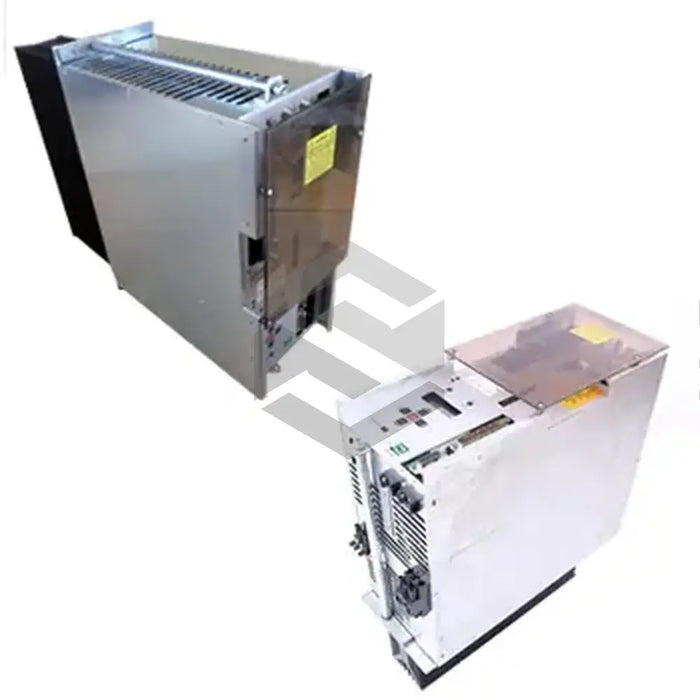

S image of KDA 2.1-50-300-A00-W1/115V

KDA 2.1-50-300-A00-W1/115V

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat KDA 2.1-50-300-A00-W1/115V is a versatile main spindle drive that requires a direct ground connection to the corresponding supply module. It's compatible with other drive controllers with a shared power supply, but operational setup must strictly follow the manufacturer's circuit diagram. The product's maximum humidity aligns with Classification F of DIN 40 050 specifications. The product's installation prohibits a horizontal or diagonal placement and requires a control cabinet. With two terminals for DC bus voltage connection, the drive features a three-pin plug-in terminal, 16-pin bus terminal strip, and identical feedback and NC connections. A programming module must be pre-set on the upper-right side during installation. The spindle drive can be facilitated by the M1-KD mechanical accessories kit, and it may require a shock-absorbing base for vibration-prone transportation. No resetting is needed for this unit as its parameters and software are stored in the programming module.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

KDA 2.1-50-300-A00-W1/115V

Function

Main Spindle Drive

Grounding Requirement

Direct to Supply Module

Compatibility

Can be used with other Drive Controllers

Installation Requirement

Manufacturer's Circuit Diagram Connection Required

Usage Conditions

Must be Cooled Down Before Touching any Parts

Control Cabinet Requirement

Mandatory

Humidity

Corresponds to Humidity Classification F, DIN 40 050 Specifications

Installation Positioning

Cannot be Horizontal or Diagonal

Terminals

Two for DC Bus Voltage Connection

Additional Features

Three-pin Plug-in Terminal and a 16-pin Bus Terminal Strip

Additional Features

Flat Gasket on Top

Electrical Connections

Feedback and NC Connections

Programming Module Placement

Set on its Top Right Side at Installation

Rating Plate

Separate Rating Plate for Programming Module

Heatsink

Secured in Place Using Fitting Bolts

Installation Method

Using M1-KD Mechanical Accessories Kit

Shock-absorbing Base

Needed if Vibrations might Occur during Transportation

Reset Requirement

No Need for a Reset at Time of Replacement

Programming Module

Stores Parameters and Operating Software

Machine-Input Data

Entered at the Time of Commissioning.
