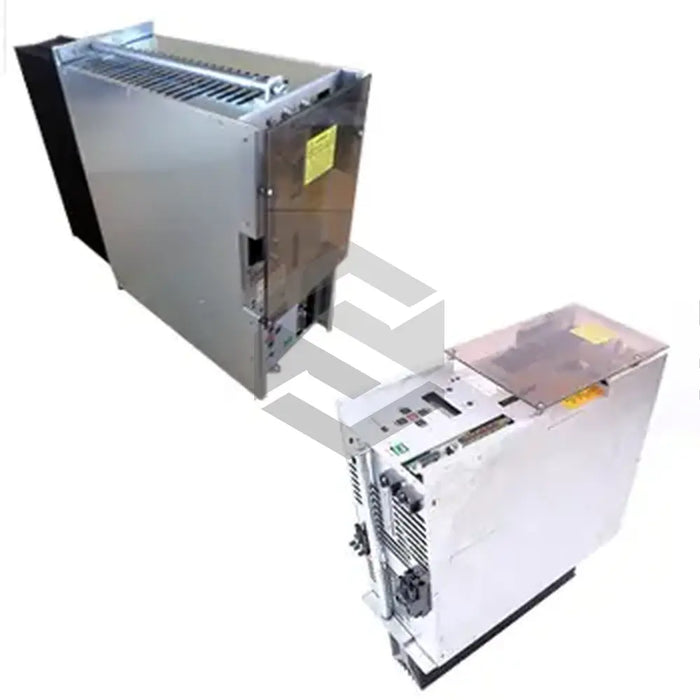

S image of KDA1.1-100-300-W1

KDA1.1-100-300-W1

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat KDA1.1-100-300-W1 main spindle drive is designed with a current rating of 100 A and relies on an integrated blower for effective cooling. Distinguishing features include an adjustable programming module secured with a knurled head screw, an intuitive control panel display showing the operating state, and the capacity for parameters to be stored directly in the programming module. The device automatically deactivates when the linked motor's surface temperature exceeds 155 °C or if the DC bus voltage drops below 200 V. Its operation depends on adherence to national EMC regulations and is conditional upon appropriate grounding, and its incorrect setup may generate harmful electrical voltages. Cleaning or storage require disconnecting from power supply, and it should be handled with care to prevent jamming or crushing. Its temperature range is from -30 °C to 85 °C during storage or transportation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

KDA1.1-100-300-W1

Current Rating

100 A

Heat Emission

Workload dependent external heat emission and internal heat loss

Cooling Mechanism

Depends on blower to conduct air over heatsink

Fixture

Knurled head screw for programming module

Operating State Indicator

Display on control panel, red LED for fault

Storage

Parameters stored in programming module

Power Output Lock

When display depicts a DISABLED operating mode

DC Bus Voltage

Less than 200 V indicates not ready for operation

Auto Shutdown

Activates when motor surface temperature reaches 155 °C

Display Control

Up and down keys on keypad

Programming Module

No insertion or removal with voltage applied

EMC Regulations

Must adhere to national EMC regulations

Electrical Connections

Incorrect connections may generate high voltage

Grounding Connection

Must be established before operation

Cleaning/Storage

Disconnect from power and secure against reconnection

Handling/Mounting

Safeguard against jamming or crushing

Storage and Transportation Temperature

Range of -30 °C to 85 °C

Safety Note

Gloves required when touching hot surface.
