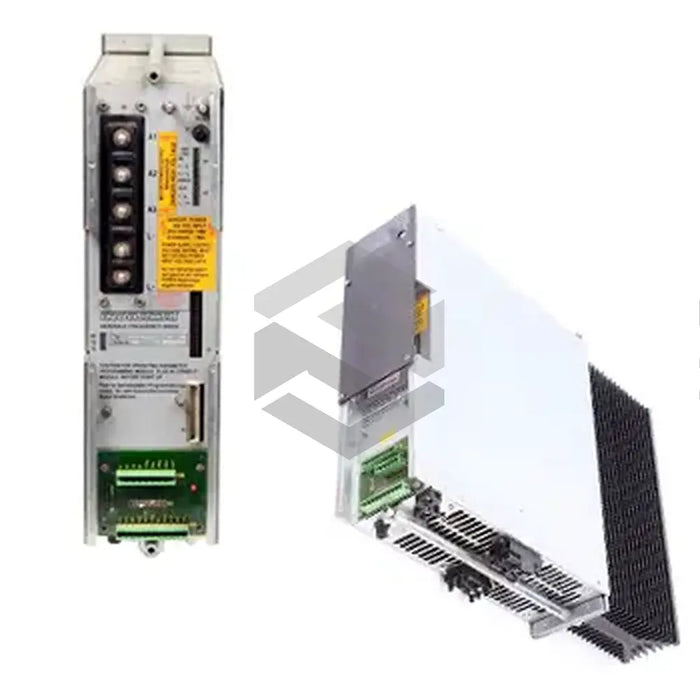

KDF 1.2-150-300-W1

The Bosch Rexroth Indramat KDF 1.2-150-300-W1 drive is a robust addition to the KDF Variable Frequency Drives series, designed for precise motor speed and position control in industrial environments. This variable frequency drive delivers high efficiency in power conversion and supports motors up to 25 HP, providing reliable performance for demanding applications. Engineered for straightforward integration, the KDF 1.2-150-300-W1 installs directly inside a control cabinet in a vertical orientation, minimizing installation complexity. Its compact footprint and forced ventilation cooling enable consistent operation under continuous loads without the need for complex external heat sinks.

The technical architecture of the KDF 1.2-150-300-W1 centers on a Digital Velocity Loop control principle implemented via a microprocessor-based digital velocity loop and an Analog Velocity Command interface, ensuring smooth acceleration and deceleration profiles. Critical specifications include a Current Rating of 150 A, Voltage Rating of 300 VDC, and a maximum speed capacity of 8000 RPM for demanding high-speed motor applications. The device belongs to the Product Group KDF, with a Series Code of 1 and a Version Code of 2, enabling traceable configuration management. Heat management is handled through a Blower Cooling Method that provides forced ventilation to dissipate thermal energy effectively. The drive is rated for installation in a Control Cabinet: Yes, guaranteeing compliance with industrial safety standards.

Operational performance is enhanced by the drive’s ability to resist load fluctuations through zero-speed stiffness and dynamic current handling. The unit achieves precise speed regulation using a digital processing loop, delivering stable output even when the ambient operating conditions approach upper limits. Forced ventilation ensures housing temperatures remain within operational thresholds, although the enclosure may feel warm under heavy loads. The KDF 1.2-150-300-W1 also features easy retrofitting of external components, which simplifies maintenance and upgrade cycles. Continuous monitoring of torque and current prevents overcurrent conditions and improves system reliability in 24/7 industrial use.

System integration is streamlined for compatibility with Bosch Rexroth’s TDM and TDR servo drives, enabling synchronized multi-axis control in coordinated motion systems. The drive’s design for vertical cabinet mounting and its adherence to standardized communication interfaces reduce engineering overhead during machine build and retrofit projects. Ideal applications include HVAC blower control, pump regulation, and general-purpose motor drives where precise speed control, high current capability, and robust integration are essential. The KDF 1.2-150-300-W1 offers an optimal solution for system architects seeking dependable performance in compact variable frequency drive installations.
