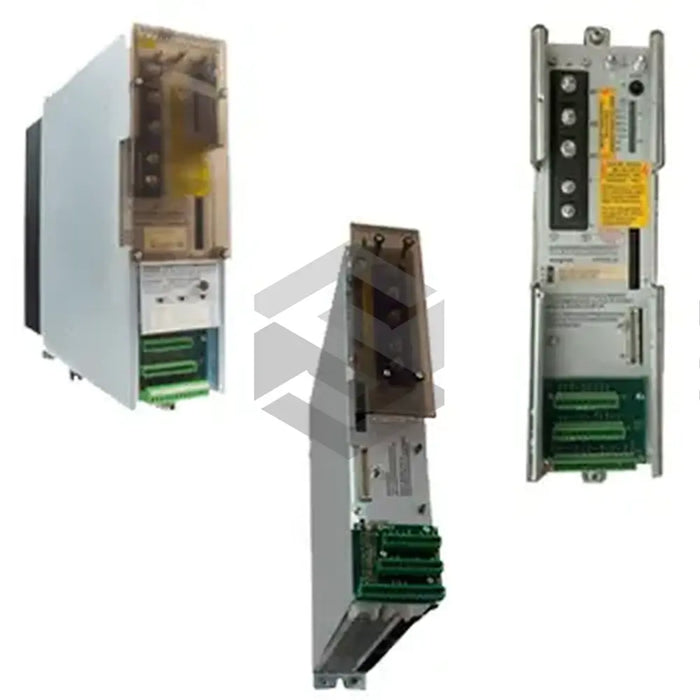

S image of KDS 1.1-100-300-W1

KDS 1.1-100-300-W1

by Bosch Rexroth Indramat
$2,083.33 - $2,083.33
$2,083.33
$2,083.33 - $2,083.33
$2,083.33

In Stock, Ships 1 - 3 Days

The KDS 1.1-100-300-W1 servo drive, from Bosch Rexroth Indramat's KDS series, utilizes cold-running technology for efficient operation and requires installation within a control cabinet. Compatible with the MAC motor range, this device is designed for safe and precise control with its high mains voltage accessible via terminals L1, L2, and L3. It includes a terminal strip on connectors X25 and X26 for user inputs/outputs. Proper commissioning is mandatory before use, and safe operation depends on a functional emergency stop switch on associated machinery. The drive, featuring advanced safety mechanisms, requires personnel protection against hot parts and mandates a standstill state for safety when entering the danger zone. Equipped with a cooling fan, the unit sports a diagnostic display for errors and a TU contact for operational status, along with a green LED indicating power presence. Assembled using the M1-KD kit and possessing Class C insulation per DIN VDE 0110, it should only be applied for supported uses.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Series

KDS

Model

KDS 1.1-100-300-W1

Technology

Cold-running

Installation

Inside control cabinet

Connectors

X25 and X26 terminal strips

Motor Compatibility

Bosch Rexroth MAC range

Voltage Terminals

L1, L2, L3

Cooling

Air circulation (fan-cooled)

Safety Features

Extensive

Brake Control

Holds and monitors motor brake

Diagnostic Display

Fault diagnosis

Operation Indicator

Green power LED

Mechanical Assembly Kit

M1-KD

Insulation Class

Class C (DIN VDE 0110)

Unsupported Applications

Should not be used

Emergency Stop

Must be working before operation

Standstill Mode

Required for safety

Contact Type

TU contact closed when no fault

Commissioning

Required prior to use
