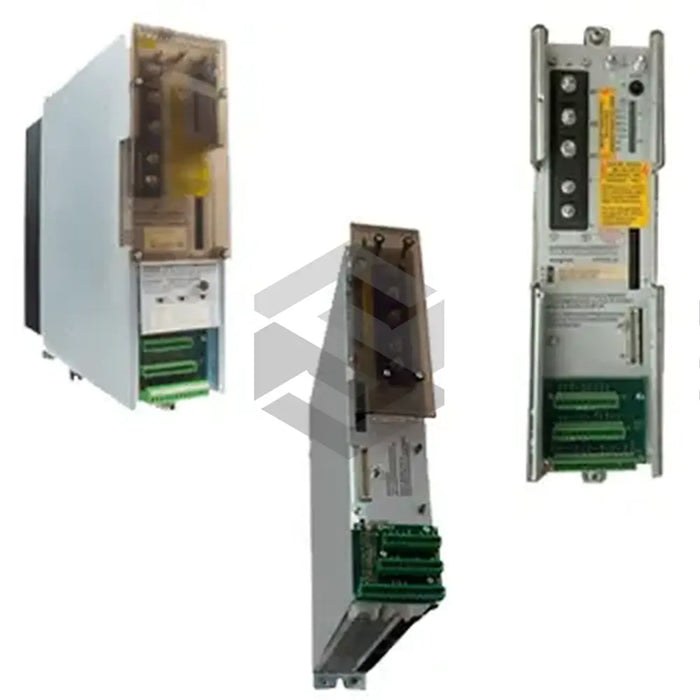

KDS 1.1-150-300-W1-220

Original price $10,389.64 - Original price $10,389.64
Original price
$10,389.64
$10,389.64 - $10,389.64
Current price $10,389.64
Available, Shipping Varies
Bosch Rexroth Indramat introduced the Indramat MAC servo motors, specifically designed to enhance performance for high-accuracy servo applications in wood working, automation systems, and production machines. These motors consist of a modular design lowering cost and downtime through easily replaceable individual components like servo drive and power supply modules. One such module is the Indramat KDS 1.1-150-300-W1-220, employing cold-running technology. It operates on a link circuit voltage of 300 Volts DC, a fan connection voltage of 220 Volts AC, and has a current rating of 150 Amperes. The product is best operated in a closed cabinet utilizing an external fan to prevent overheating. The fan rotor and the power section's heatsink should be placed outside the control cabinet. Additionally, to achieve optimum performance, its conductors and earthing connections should be routed from the supply module's main earthing point radially. Protection is rated IP 10, safeguarding against large body parts but not liquids.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Drive Module
  • Model: KDS 1.1-150-300-W1-220
  • Technology: Cold-running
  • Link Circuit Voltage: 300 Volts DC
  • Current Rating: 150 Amperes
  • Fan Connection Voltage: 220 Volts AC
  • Recommended Mounting: Closed Cabinet
  • Ventilation: Forced using external fan
  • Usage: Controller for Indramat MAC motors
  • Protective Conductors and Earthing Connections: Radially routed from main earthing point of supply module
  • Ingress Protection Rating: IP 10
  • Protection: Against large body parts (not deliberate contact), no protection against liquids
